TL082 ST General Purpose Dual J-FET Operational Amplifier Data Sheet

Download PDF datasheet for STMicroelectronics TL082 General Purpose Dual J-FET Operational Amplifier (EN) 9 pages 1995 zip

SKU: TL082STDS1995 Category: Brand:

Description

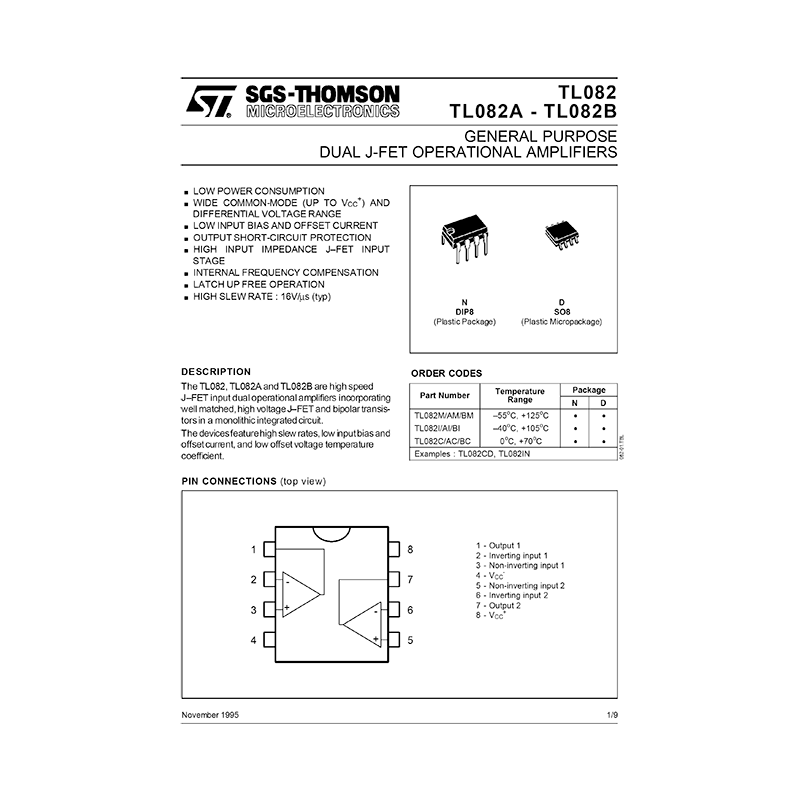

This PDF datasheet is for the ST TL082 Operational Amplifier.

ST TL082 General Purpose Dual J-FET Operational Amplifier

TL082MN
TL082IN
TL082CN

TL082MD
TL082ID
TL082CD

– Lowpower Consumption
– Wide Common-Mode (up to Vcc+) and Differential Voltage Range
– Low Input Bias And Offset Current
– Output Short-Circuit Protection
– High Input Impedance J-FET Input Stage
– Internal Frequency Compensation
– Latch Up Free Operation High Slewrate : 16V/us (Typ)

The TL082 is a high speed J-FET input dual operational amplifier incorporating well matched, high voltage J-FET and bipolar transistors in amonolithic integrated circuit.
The device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.

(PDF) DATASHEET (ENGLISH)

CONTENTS

– TL082 PIN CONNECTIONS (PINOUT)
– SCHEMATIC DIAGRAM
– ABSOLUTE MAXIMUM RATINGS
– MAXIMUM PEAK-TO-PEAK OUTPUT VOLTAGE VERSUS FREQUENCY
– MAXIMUM PEAK-TO-PEAK OUTPUT VOLTAGE VERSUS FREE AIR TEMP.
– MAXIMUM PEAK-TO-PEAK OUTPUT VOLTAGE VERSUS LOAD RESISTANCE
– MAXIMUM PEAK-TO-PEAK OUTPUT VOLTAGE VERSUS SUPPLY VOLTAGE
– INPUT BIAS CURRENT VERSUS FREE AIR TEMPERATURE
– LARGE SIGNAL DIFFERENTIAL VOLTAGE AMPLIFICATION VERSUS FREE AIR TEMPERATURE
– TOTAL POWER DISSIPATION VERSUS FREE AIR TEMPERATURE
– SUPPLY CURRENT PER AMPLIFIER VERSUS FREE AIR TEMPERATURE
– SUPPLY CURRENT PER AMPLIFIER VERSUS SUPPLY VOLTAGE
– COMMON MODE REJECTION RATIO VERSUS FREE AIR TEMPERATURE
– VOLTAGE FOLLOWER LARGE SIGNAL PULSE RESPONSE
– OUTPUT VOLTAGE VERSUS ELAPSED TIME
– EQUIVALENT INPUT NOISE VOLTAGE VERSUS FREQUENCY
– TOTAL HARMONIC DISTORTION VERSUS FREQUENCY
– PARAMETER MEASUREMENT INFORMATION
– Figure 1: Voltage Follower
– Figure 2: Gain-of-10 Inverting Amplifier
– TYPICAL APPLICATION: 100KHz QUADRUPLE OSCILLATOR
– PACKAGE MECHANICAL DATA

Why download the Datasheet?

This datasheet provides all the information from ST about the TL082 Dual J-FET Operational Amplifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
