BD909 ST Silicon NPN Power Transistor Data Sheet

Download PDF data sheet for ST BD909 15A 80V Complementary Silicon NPN Power Transistor (EN) zip

SKU: STBD909DS Category: Brand:

Description

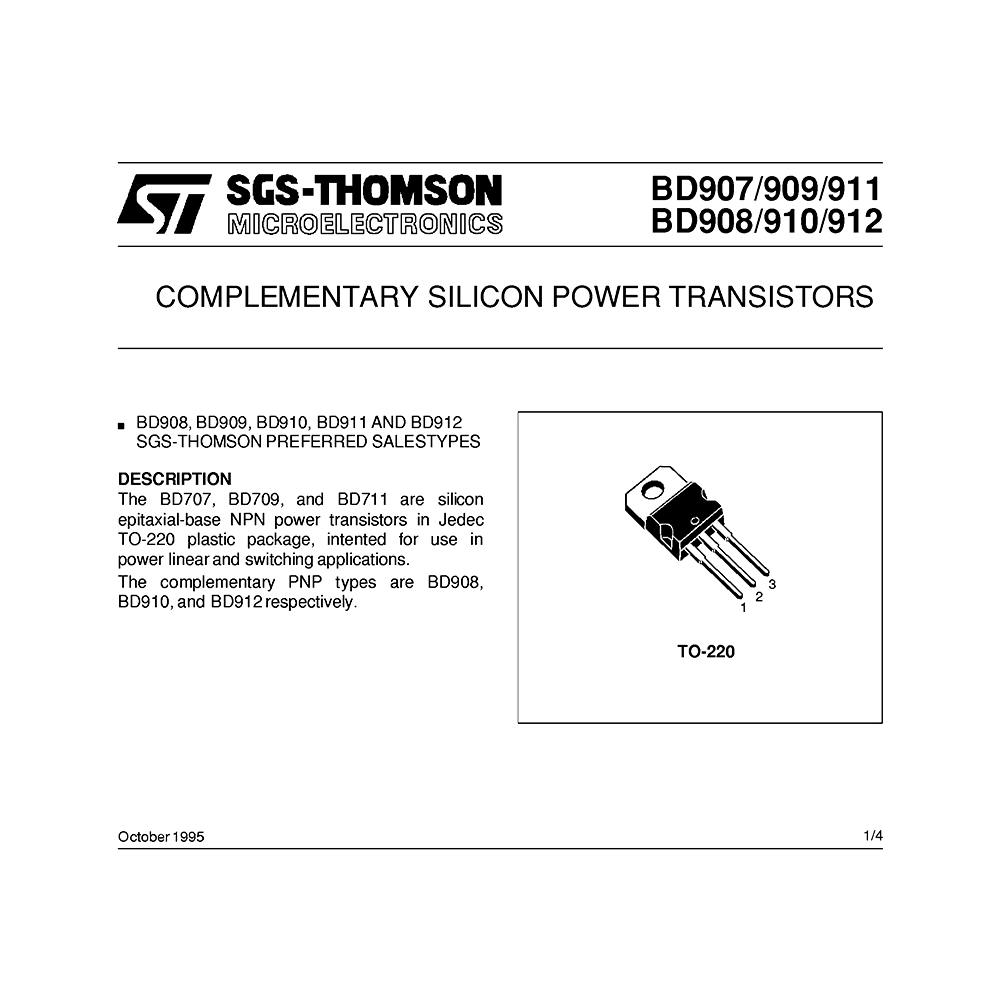

This PDF data sheet is for the ST BD909 15A 80V Complementary Silicon NPN Power Transistor.

ST BD909 15A 80V Complementary Silicon NPN Power Transistor

The BD909 is a silicon epitaxial-base NPN power transistor in Jedec TO-220 plastic package, intended for use in power linear and switching applications.

(PDF) DATASHEET in English (EN) languages.

CONTENTS:

– Description
– Package
– Internal Schematic Diagram
– Pinout
– Absolute Maximum Ratings
– Maximum Collector-Base Voltage
– Maximum Collector-Emitter Voltage
– Maximum Emitter-Base Voltage
– Maximum Collector Current
– Maximum Base Current
– Maximum Total Dissipation
– Maximum Operating Junction Temperature
– Thermal Data
– Electrical Characteristics
– TO-220 Mechanical Data

This data sheet provides all the information (according to the table of contents) from ST about the BD909 15A 80V Complementary Silicon NPN Power Transistor. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

Download it by clicking the button below
