ULQ2004A Allegro MicroSystems Darlington Array Data Sheet

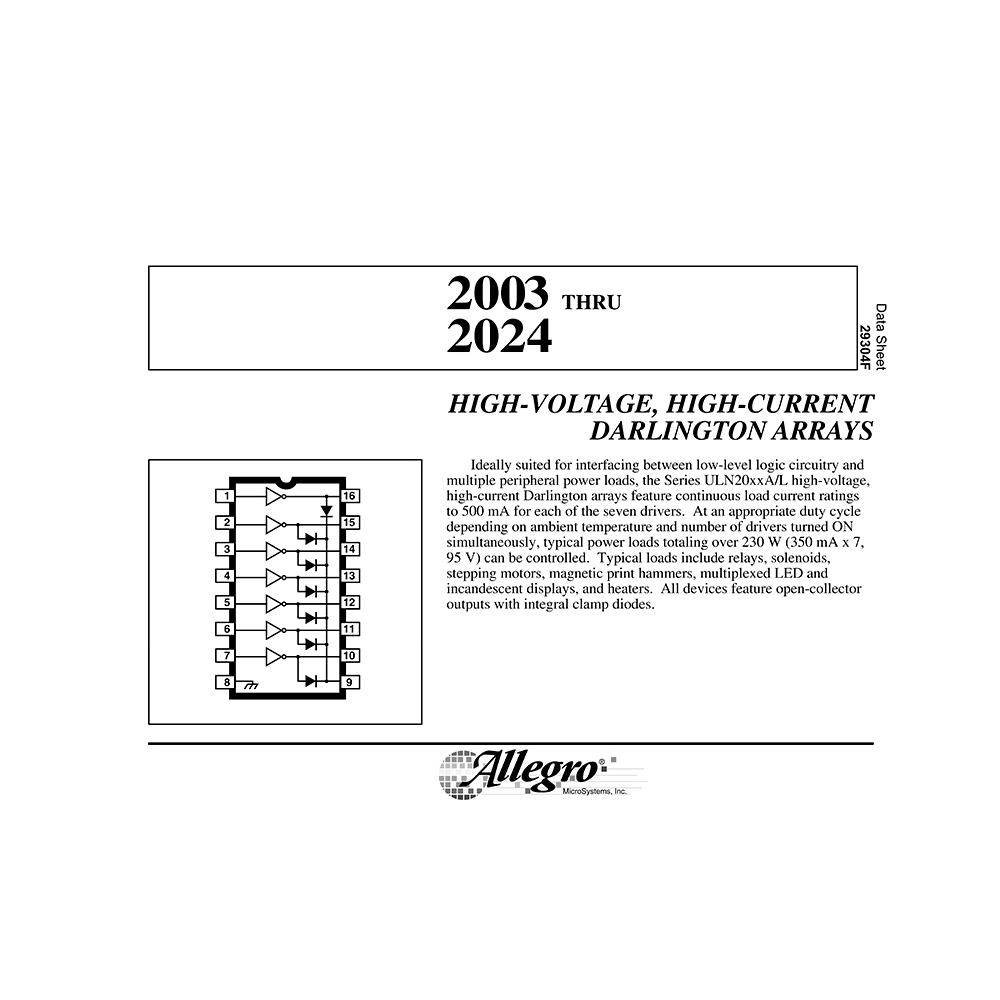

Download Datasheet for Allegro MicroSystems ULQ2004A High-Voltage High-Current Darlington Array [10 pages 29304F 2000 pdf/zip]
Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULQ20xxA high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers. At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULQ2004A has series input resistors for operation directly from 6 to 15 V CMOS or PMOS logic outputs.
The ULQ2004A is the standard Darlington arrays. The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state. Outputs may be paralleled for higher load current capability.
These Darlington arrays are furnished in 16-pin dual in-line plastic packages (suffix “A”). All devices are pinned with outputs opposite inputs to facilitate ease of circuit board layout. All devices are rated for operation over the temperature range of -40 deg C to +85 deg C.
– ABSOLUTE MAXIMUM RATINGS
– INTERNAL DIAGRAM
– DEVICE PART NUMBER DESIGNATION
– PARTIAL SCHEMATICS
– ELECTRICAL CHARACTERISTICS
– TEST FIGURES
– ALLOWABLE COLLECTOR CURRENT AS A FUNCTION OF DUTY CYCLE
– TYPICAL APPLICATIONS
– SATURATION VOLTAGE AS A FUNCTION OF COLLECTOR CURRENT
– COLLECTOR CURRENT AS A FUNCTION OF INPUT CURRENT
– INPUT CURRENT AS A FUNCTION OF INPUT VOLTAGE
