ULN2804A Allegro MicroSystems Darlington Array Data Sheet

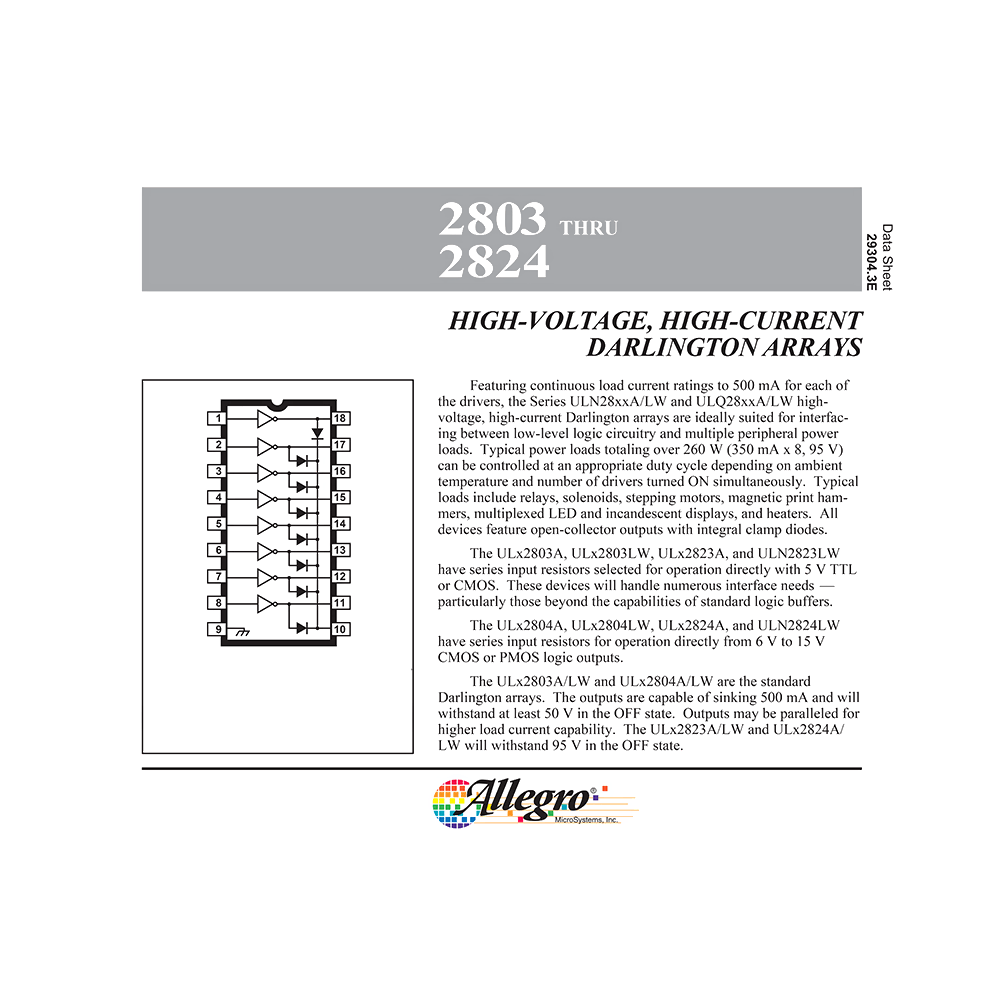

Download Datasheet for Allegro MicroSystems ULN2804A High-Voltage High-Current Darlington Array [10 pages 29304.3D / 29304.3E 1998/1999 pdf/zip]
Description
Featuring continuous load current ratings to 500 mA for each of the drivers, the Series ULN28xxA highvoltage, high-current Darlington arrays are ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads. Typical power loads totaling over 260 W (350 mA x 8, 95 V) can be controlled at an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULx2804A have series input resistors for operation directly from 6 V to 15 V CMOS or PMOS logic outputs.
The ULx2804A are the standard Darlington arrays. The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state. Outputs may be paralleled for higher load current capability.
These Darlington arrays are furnished in 18-pin dual in-line plastic packages (suffix “A”). All devices are pinned with outputs opposite inputs to facilitate ease of circuit board layout. Prefix “ULN” devices are rated for operation over the temperature range of -20 deg C to +85 deg C.
CONTENTS:
– INTERNAL DIAGRAM
– ABSOLUTE MAXIMUM RATINGS
– FEATURES
– DEVICE PART NUMBER DESIGNATION
– PARTIAL SCHEMATICS
– ELECTRICAL CHARACTERISTICS
– TEST FIGURES
– ALLOWABLE COLLECTOR CURRENT AS A FUNCTION OF DUTY CYCLE
– INPUT CURRENT AS A FUNCTION OF INPUT VOLTAGE
– SATURATION VOLTAGE AS A FUNCTION OF COLLECTOR CURRENT
– COLLECTOR CURRENT AS A FUNCTION OF INPUT CURRENT
