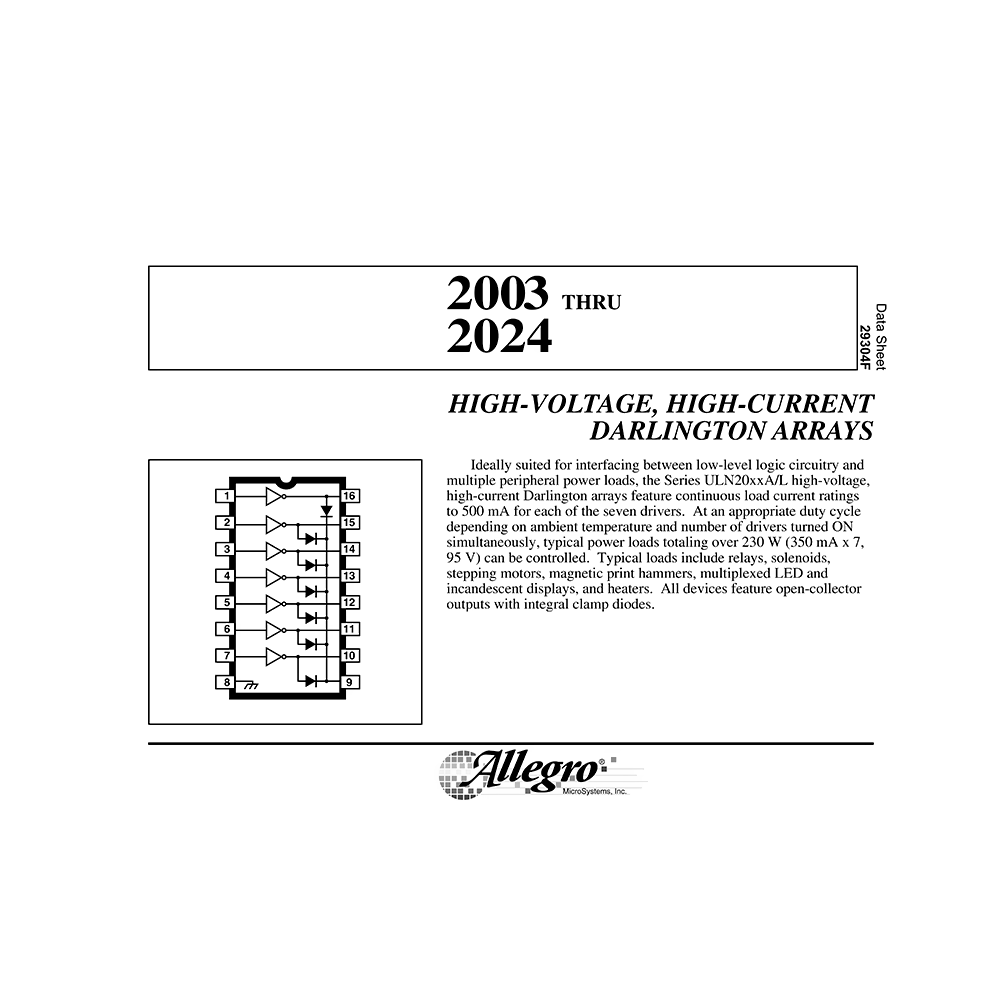

This PDF data sheet is for the Allegro ULN2024L High-Voltage High-Current Darlington Array.
Allegro MicroSystems ULN2024L High-Voltage High-Current Darlington Array
Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxL high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers. At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULN2024L has series input resistors for operation directly from 6 to 15 V CMOS or PMOS logic outputs.
The ULN2024L will withstand 95 V in the OFF state.
These Darlington arrays are furnished in 16-lead surface-mountable SOICs (suffix “L”). All devices are pinned with outputs opposite inputs to facilitate ease of circuit board layout. All devices are rated for operation over the temperature range of -20 deg C to +85 deg C.
(PDF) DATASHEET in English (EN) language.
ABSOLUTE MAXIMUM RATINGS
– Output Voltage
– Input Voltage
– Continuous Output Current
– Continuous Input Current
– Power Dissipation
– Operating Temperature Range
– Storage Temperature Range
DEVICE PART NUMBER DESIGNATION
ALLOWABLE COLLECTOR CURRENT AS A FUNCTION OF DUTY CYCLE
INPUT CURRENT AS A FUNCTION OF INPUT VOLTAGE
SATURATION VOLTAGE AS A FUNCTION OF COLLECTOR CURRENT
COLLECTOR CURRENT AS A FUNCTION OF INPUT CURRENT
This datasheet provides all the information (according to the table of contents) from Allegro MicroSystems about the ULN2024L High-Voltage High-Current Darlington Array. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
