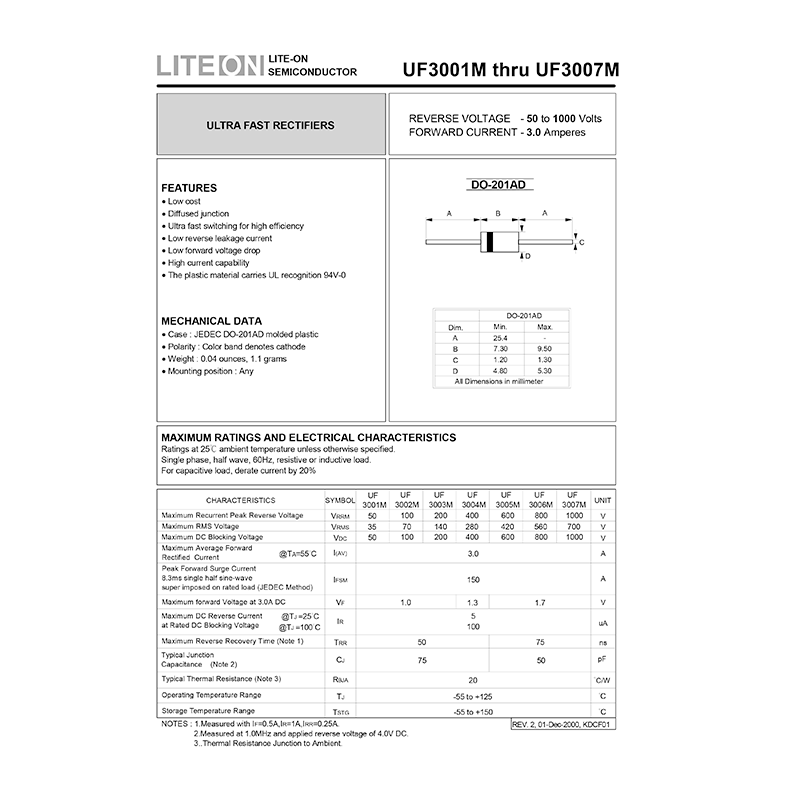

UF3003M Lite-On Semiconductor 200V 3A Ultra Fast Rectifier Data Sheet
Download PDF datasheet for Lite-On Semiconductor UF3003M 200V 3A Ultra Fast Rectifier (EN) 2 pages rev.2, 01-Dec-2000, KDCF01 zip
Description
This PDF data sheet is for the Lite-On Semiconductor UF3003M 200V 3A Ultra Fast Rectifier.
Lite-On Semiconductor UF3003M 200V 3A Ultra Fast Rectifier
FEATURES
– Low cost
– Diffused junction
– Ultra fast switching for high efficiency
– Low reverse leakage current
– Low forward voltage drop
– High current capability
– The plastic material carries UL recognition 94V-0
MECHANICAL DATA
– Case : JEDEC DO-201AD molded plastic
– Polarity : Color band denotes cathode
– Weight : 0.04 ounces, 1.1 grams
– Mounting position : Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING AND CHARACTERISTIC CURVES
– Fig.1 – Forward Current Derating Curve
– Fig.2 – Maximum Non-Repetitive Surge Current
– Fig.3 – Typical Junction Capacitance
– Fig.4 – Typical Forward Characteristics
(PDF) DATASHEET in English (EN) language.
CONTENTS:
MECHANICAL DATA
– Case : JEDEC DO-201AD molded plastic
– Polarity : Color band denotes cathode
– Weight : 0.04 ounces, 1.1 grams
– Mounting position : Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Recurrent Peak Reverse Voltage
– RMS Voltage
– Average Forward Rectified Current
– Peak Forward Surge Current
– Forward Voltage
– DC Reverse Current
– Reverse Recovery Time
– Typical Junction Capacitance
– Typical Thermal Resistance
– Operating Temperature Range
– Storage Temperature Range
RATING AND CHARACTERISTIC CURVES
– Fig.1 – Forward Current Derating Curve
– Fig.2 – Maximum Non-Repetitive Surge Current
– Fig.3 – Typical Junction Capacitance
– Fig.4 – Typical Forward Characteristics
This datasheet provides all the information (according to the table of contents) from Lite-On Semiconductor about the UF3003M 200V 3A Ultra Fast Rectifier. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
