UCC2813-0 Unitrode Low Power BiCMOS Current Mode PWM Data Sheet

Download PDF datasheet for Unitrode Integrated Circuits UCC2813-0 Low Power BiCMOS Current Mode PWM (EN) 7 pages 1996 zip

SKU: UCC28130UNITRODEDS1996 Category: Brand:

Description

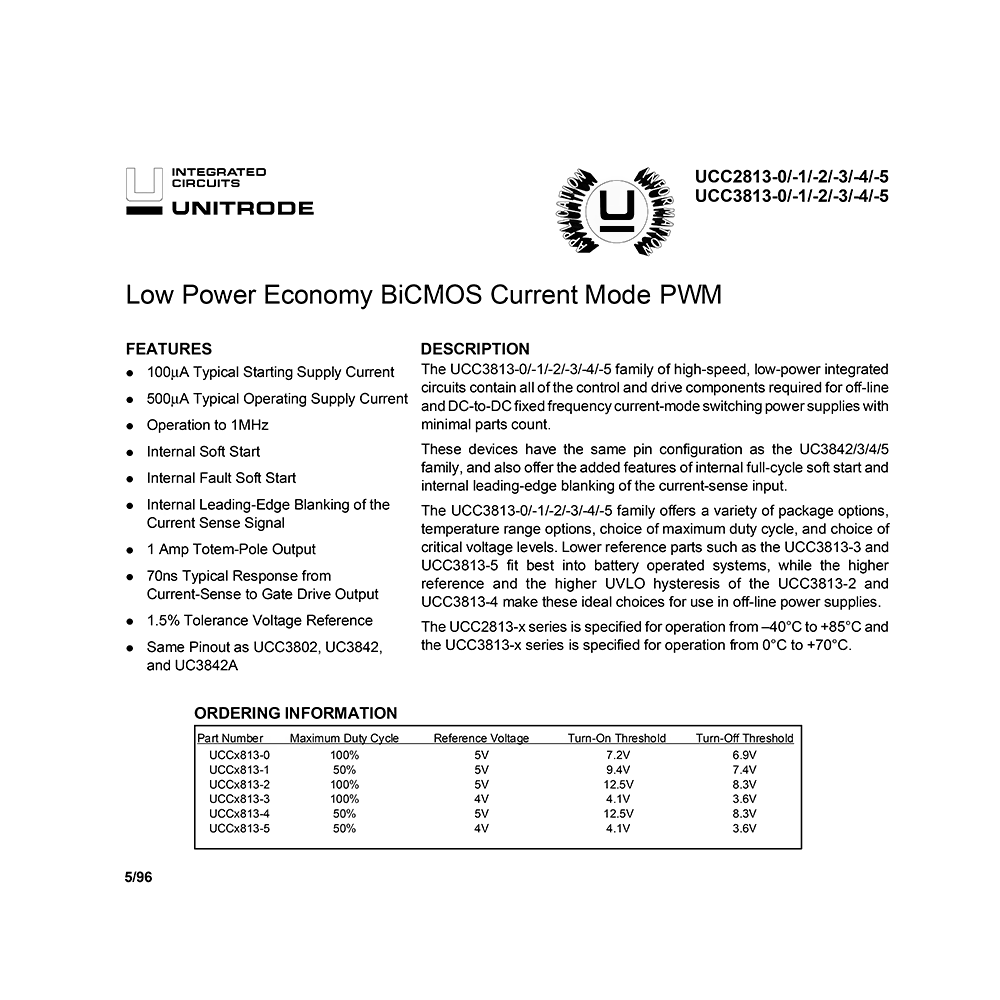

This PDF data sheet is for the Unitrode UCC2813-0 Low Power BiCMOS Current Mode PWM.

Unitrode UCC2813-0 Low Power BiCMOS Current Mode PWM

The UCC2813 family of high-speed, low-power integrated circuits contain all of the control and drive components required for off-line and DC-to-DC fixed frequency current-mode switching power supplies with minimal parts count.
These devices have the same pin configuration as the UC3842/3/4/5 family, and also offer the added features of internal full-cycle soft start and internal leading-edge blanking of the current-sense input.
The UCC2813 family offers a variety of package options, temperature range options, choice of maximum duty cycle, and choice of critical voltage levels.
The UCC2813-x series is specified for operation from –40 deg C to +85 deg C.

FEATURES:
– 100mA Typical Starting Supply Current
– 500mA Typical Operating Supply Current
– Operation to 1MHz
– Internal Soft Start
– Internal Fault Soft Start
– Internal Leading-Edge Blanking of the Current Sense Signal
– 1 Amp Totem-Pole Output
– 70ns Typical Response from Current-Sense to Gate Drive Output
– 1.5% Tolerance Voltage Reference
– Same Pinout as UCC3802, UC3842, and UC3842A

(PDF) DATASHEET in English (EN) language.

CONTENTS:

BLOCK DIAGRAM

UCC2813-0 PINOUT

ABSOLUTE MAXIMUM RATINGS

CONNECTION DIAGRAM

ELECTRICAL CHARACTERISTICS

PIN DESCRIPTIONS

Figures:
– Error Amplifier Gain/Phase Response
– Vref vs. Vcc
– Oscillator Frequency vs. Rt and Ct
– Max. Duty Cycle vs. Oscillator Frequency
– Icc vs. Oscillator Frequency
– Dead Time vs. Ct

This data sheet provides all the information (according to the table of contents) from Unitrode Integrated Circuits about the UCC2813-0 Low Power BiCMOS Current Mode PWM. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
