TL431C HTC Programmable Shunt Regulator Data Sheet

Download PDF datasheet for TAEJIN Technology HTC TL431C Programmable Precision Shunt Regulator (EN) 15 pages 2001 zip

SKU: TL431CHTCDS2001 Category: Brand:

Description

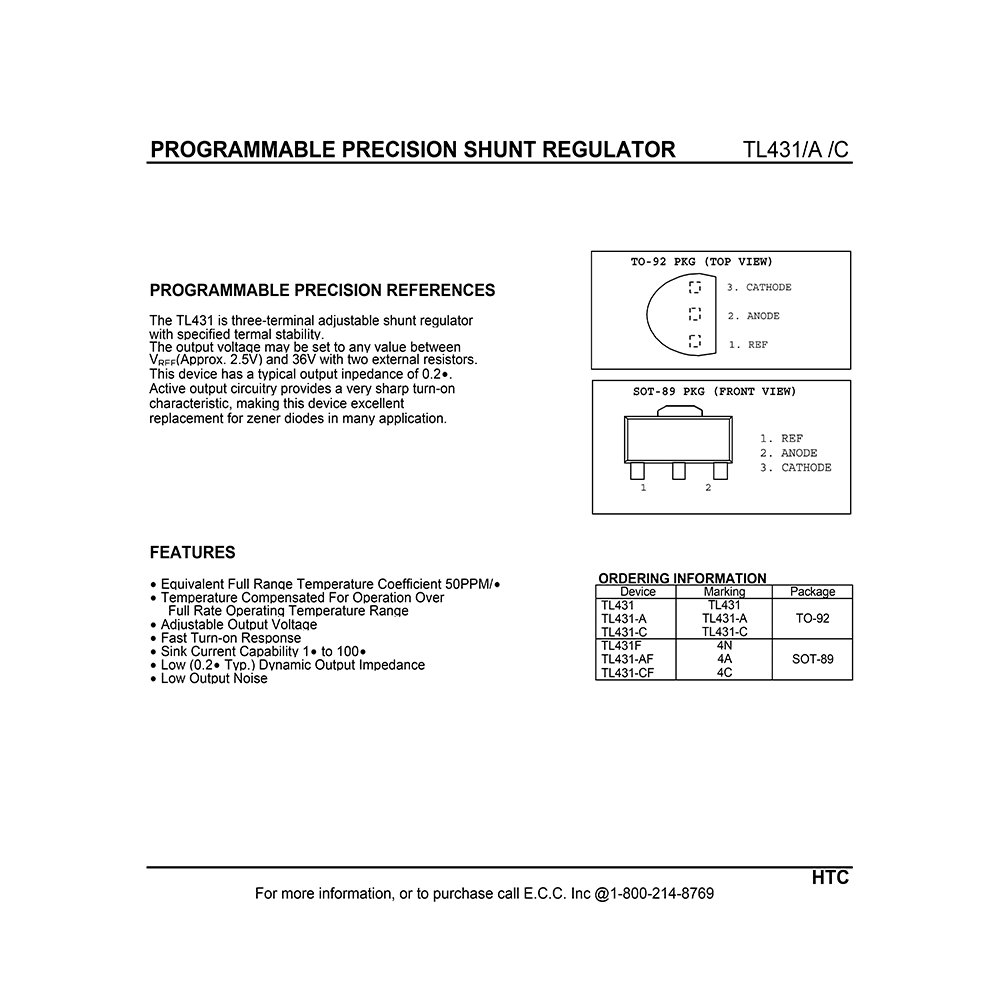

This PDF data sheet is for the HTC Korea TL431C Programmable Precision Shunt Regulator.

HTC Korea TL431C Programmable Precision Shunt Regulator

The TL431 is three-terminal adjustable shunt regulator with specified termal stability.
The output voltage may be set to any value between Vref(Approx. 2.5V) and 36V with two external resistors.
This device has a typical output inpedance.
Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for zener diodes in many application.

FEATURES
– Equivalent Full Range Temperature Coefficient
– Temperature Compensated For Operation Over Full Rate Operating Temperature Range
– Adjustable Output Voltage
– Fast Turn-on Response
– Sink Current Capability
– Low Dynamic Output Impedance
– Low Output Noise

(PDF) DATASHEET in English (EN) language.

CONTENTS:

– FUNCTION BLOCK DIAGRAM
– EQUIVALENT SCHEMATIC
– TL431C PINOUT
– RECOMMENDED OPERATING CONDITIONS
– DISSIPATION RATING TABLE1-FREE-AIR TEMPERATURE
– ABSOLUTE MAXIMUM RATINGS
– ELECTRICAL CHARACTERISTICS
– TYPICAL PERFORMANCE CHARACTERISTICS
– APPLICATION INFORMATION

This datasheet provides all the information (according to the table of contents) from HTC Korea about the TL431C Programmable Precision Shunt Regulator. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

Download it by clicking the button below
