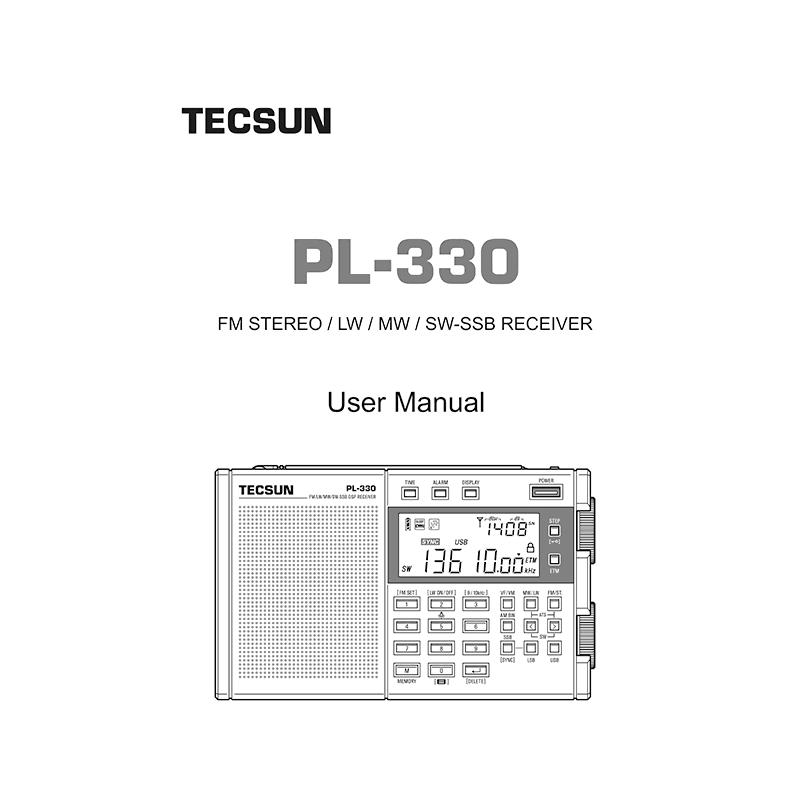

Tecsun PL-330 FM/LW/MW/SW-SSB Receiver User Manual

Description

This PDF user manual is for the Tecsun PL-330 radio.

About the Item

Tecsun PL-330 FM Stereo / LW / MW / SW-SSB Receiver

TECSUN PL-330 is a portable PLL DSP multiband receiver that can receive FM, Longwave (LW), Medium Wave (MW) and Shortwave (SW) frequency bands and is Single Sideband (SSB) capable.
The DSP microchip digitizes the analog radio signal which, in combination with the PLL (Phase-Locked Loop) circuitry, greatly improves the radio’s sensitivity, selectivity, S/N ratio and anti-interference capability.
The PL-330 receiver has Tecsun’s new ETM+ feature, which gives the possibility of setting up time-specific memories for long wave (LW), medium wave (AM) and shortwave (SW).
Powered by BL-5C lithium battery.

Document(s) available

(PDF) USER MANUAL

Available languages

ENGLISH (EN)

SUMMARY OF CONTENTS

GETTING STARTED
– PL-330 at a glance
– Powering your device
– Charging the battery
– Setting the clock
– Setting the FM frequency range
– Setting the MW (AM) frequency range and tuning step
– Enabling/Disabling longwave (LW)

USING THE DEVICE
– Turning the device on/off
– Volume control
– VF (View Frequency) and VM (View Memory)
– Using the radio’s antennas
– Tuning into stations: Manual tuning. Auto scan. Direct keypad entry. SW / SSB meter band selection.
– Working with station memories: Storing stations manually. Auto Tuning Storage (ATS). Storing stations during auto scan.
– Listening to stored stations: Recalling stored stations. Memory scan.
– Deleting stored stations: Deleting a single station. Deleting stations during memory scan. Deleting all stored stations.
– Enhanced Tuning Mode (ETM+): An introduction
– Using ETM+ to scan and store stations
– Listening to stations in the ETM+ memory
– Deleting a single ETM+ station

OTHER SETTINGS AND FEATURES
– Auto sorting memory
– Single sideband (SSB)
– Synchronous detection (SYNC)
– AM bandwidth selection
– FM stereo/mono selection
– FM de-emphasis time constant
– Display mode
– Add seconds to the clock
– Display backlight
– Setting the sleep timer
– Activating/Deactivating the alarm
– Setting the alarm time
– Setting the alarm station
– Snooze function
– Keylock

MISCELLANEOUS
– Synchronous detection: An introduction
– Troubleshooting
– Lithium battery safety instructions
– Radio maintenance
– PL-330 specifications

Why download the Manual?

This user manual provides all the information from TECSUN about the PL-330 radio, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Manual?

Download it by clicking the button below

Download file
