Stanley FATMAX PPS12CF 1200A Professional Power Station Instruction Manual
Download PDF user manual for Baccus Global / STANLEY FATMAX 1200 Peak Amp Jump-Starter Model: PPS12CF with 120 PSI Air Compressor & USB charger (EN|ES) 20 pages RD121024 2024 zip
Description

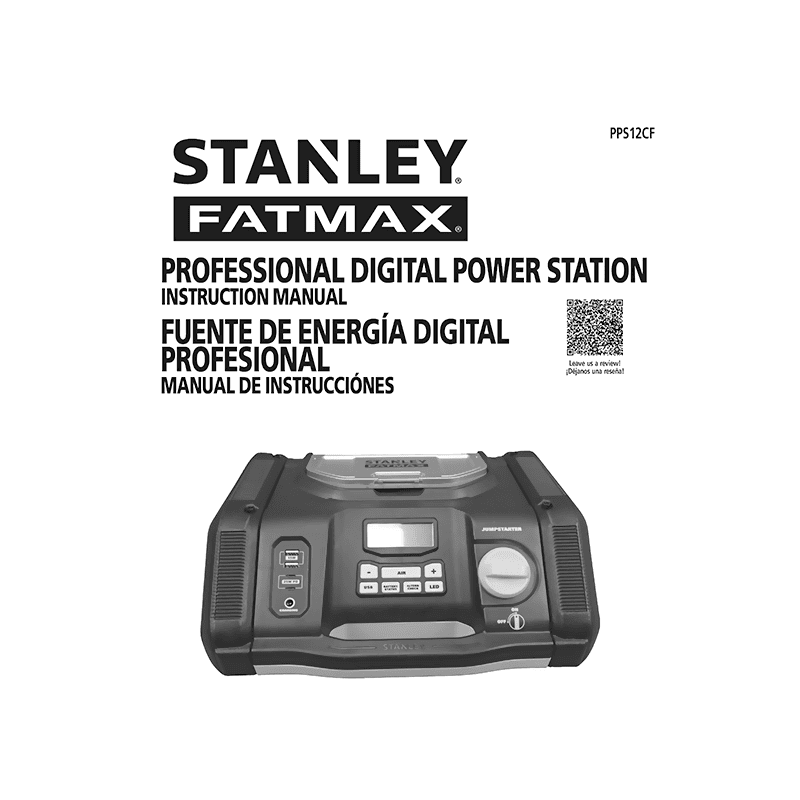

This PDF instruction manual is for the Stanley FatMax PPS12CF power station.
About the Item
Stanley PPS12CF FATMAX 1200 Peak Amp Jump-Starter with 120 PSI Air Compressor & USB charger
– Helps to start cars and trucks up to V8
– Compatible with AGM, GEL and WET 12V lead-acid batteries
– Provides reverse polarity protection to assure that jumper cables are connected correctly
– 120 psi digital air compressor with AUTOSTOP inflates tires and sports equipment
– 15W USB Type-A, 25W Type-C PD and barrel Pin charging ports
– Bright LED work light helps with roadside repairs after dark
– Informative screen gives you a quick view of operational system
– Easy operation with power buttons for USB, Battery Status, Alternator Status and LED
SPECIFICATIONS
– Boost Ampere: 1200A peak battery
– Battery type: Maintenance-free, sealed lead acid, 12VDC
– Input: 14.5VDC, 850mA
– Area light: 3 white LEDs
– USB-C output: 5VDC 3A / 9VDC 2.77A (PD 25W Max.)
– USB-A output: 5VDC, 15W Max.
– USB-C & USB-A output simultaneously: 5VDC, 15W Max.
– Compressor maximum pressure: 120 PSI
Read and understand this instruction manual before using this unit.
Save this instruction manual for future reference.
Document(s) available
(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIÓN
Available languages
ENGLISH (EN) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
FEATURES
DIGITAL LCD SCREEN DETAIL
SAFETY GUIDELINES / DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions
– Specific safety instructions for charging this unit
– Extension cords. Minimum gauge for cord sets.
– Specific safety instructions for jump starters
– Specific safety instructions for compressors
– Specific safety instructions for the USB power ports
– Personal safety
INTRODUCTION
OVERVIEW
– Common Actions and Unit Responses
VIEWING BATTERY STATUS
CHARGING/RECHARGING
– Charging/Recharging Using the Supplied AC Charger
JUMP-STARTER
– Procedure
– Procedure for jump-starting a NEGATIVE GROUNDED SYSTEM (negative battery terminal is connected to chassis) (MOST COMMON)
– Procedure for jump-starting POSITIVE GROUND SYSTEMS
ALTERNATOR CHECK
PORTABLE COMPRESSOR
– Inflating Tires or Products With Valve Stems
– Inflating Other Inflatables Without Valve Stems
USB PORTS
– Using the USB Ports
LED AREA LIGHT
CARE AND MAINTENANCE
BATTERY
– Safe Battery Disposal
TROUBLESHOOTING
– Unit will not charge
– Unit fails to jump-start
– Portable compressor will not inflate
– USB power port will not power appliance
– LED area light does not come on
ACCESSORIES
TECHNICAL ASSISTANCE
WARRANTY
Why download the Manual?
This instruction manual provides all the information from BACCUS GLOBAL / STANLEY about the FATMAX PPS12CF power station, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
