Stanley FATMAX LJ18F 1800A Jump-Starter / Power Bank Instruction Manual
Download PDF user manual for Baccus Global / STANLEY FATMAX 1800 Peak Amp Lithium Jump Starter Model: LJ18F with USB Power Bank (EN|ES) 2 pages RD081423 2023 zip
Description
This PDF instruction manual is for the Stanley FatMax LJ18F jump starter.
About the Item
Stanley LJ18F FATMAX 1800 Peak Amp Lithium Jump Starter with USB Power Bank
– Helps to start cars and trucks up to V8
– Compatible with AGM, GEL and WET 12V lead-acid batteries
– Provides reverse polarity protection to assure that jumper cables are connected correctly
– 30W USB Type-C-PD (power in/out) and USB 15W Type – A ports to charge most devices
– Bright LED work light helps with roadside repairs after dark
– Informative status indicators let you know remaining power in internal battery
– Ruggedly constructed for durability
– Includes an AC charging adapter
SPECIFICATIONS
Jump Starter / USB Power Bank
– Output: 1800A Max.
– Input: 5VDC 3A / 9VDC 3A / 12VDC 2.5A / 15VDC 2A / 20VDC 1.5A (PD 30W) or 5VDC 2A Max.
– USB-A Output: 5VDC / 9VDC / 12VDC, 15W Max.
– USB-C Output: 5VDC 3A / 9VDC 3A / 12VDC 2.5A / 15VDC 2A / 20VDC 1.5A (PD 30W Max.)
– USB-A and USB-C used simultaneously: 5VDC, 15W Max.
– Battery Type: Lithium polymer, 11.1V DC
– Charging Temperature: 32 deg F to 104 deg F (0 deg C to 40 deg C)
– Operating Temperature: –4 deg F to 104 deg F (–20 deg C to 40 deg C)
120V AC/USB Charging Adapter
– Input: 120V AC, 60Hz, 13.3W
– Output: 5V DC, 2A
Read and understand this instruction manual before using this unit.
Save this instruction manual for future reference.
Document(s) available

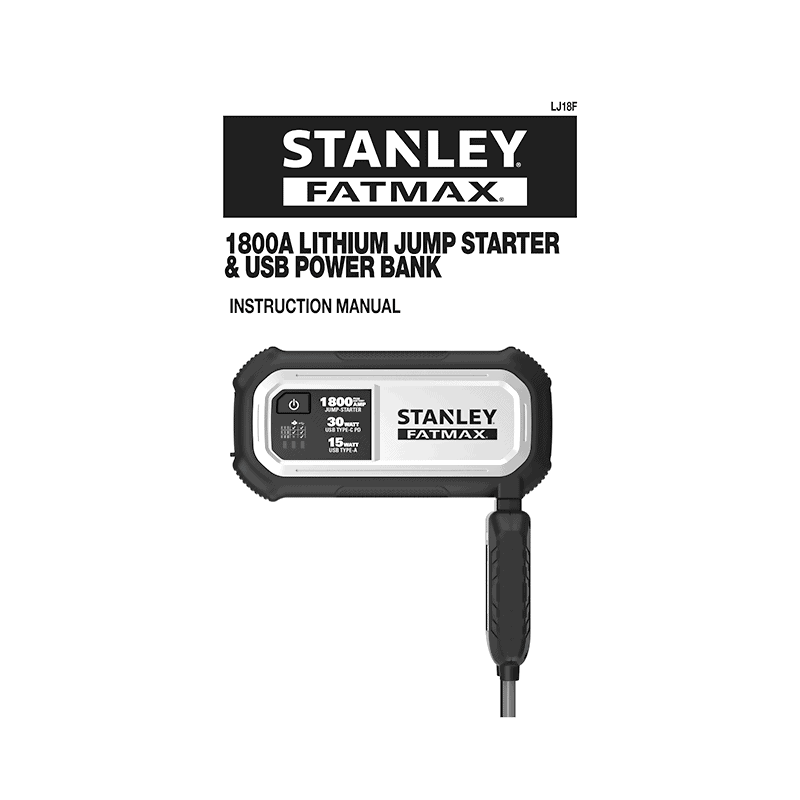

(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
Available languages
ENGLISH (EN) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
SAFETY GUIDELINES / DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions
– Specific safety instructions for lithium batteries
– Battery Charging and Capacity
– Transportation of Lithium Batteries
– Extension cords. Minimum gauge for cord sets.
– Specific safety instructions for jump starters
– Instructions pertaining to the USB ports
– Personal safety
Never attempt to jump-start or charge a frozen battery.
INTRODUCTION
FEATURES
VIEWING BATTERY STATUS
CHARGING/RECHARGING
– Charging/recharging using the 120 Volt AC/USB charging adapter
– Charging/recharging using the USB charging cable and a device with a USB-A power port (not supplied)
OPERATING INSTRUCTIONS
– Jump-Starting Using The Smart Cables
– Battery Clamp Connection Precautions
– Connecting the Jump Starter Using the Included Battery Clamps
– Procedure
OPERATING THE USB PORTS
– USB Ports Fault Conditions
OPERATING THE 120V AC/USB CHARGING ADAPTER’S USB PORT
OPERATING THE AREA LIGHT
CARE AND MAINTENANCE
BATTERY
– Safe Battery Disposal
TROUBLESHOOTING
– Unit will not charge
– The Jump Starter will not start the vehicle
– The LED Light will not operate
– The USB Ports will not operate
– The 120V AC/USB Charging Adapter’s USB Port will not operate
ACCESSORIES
SERVICE INFORMATION
WARRANTY
Why download the Manual?
This instruction manual provides all the information from BACCUS GLOBAL / STANLEY about the FATMAX LJ18F jump starter, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
