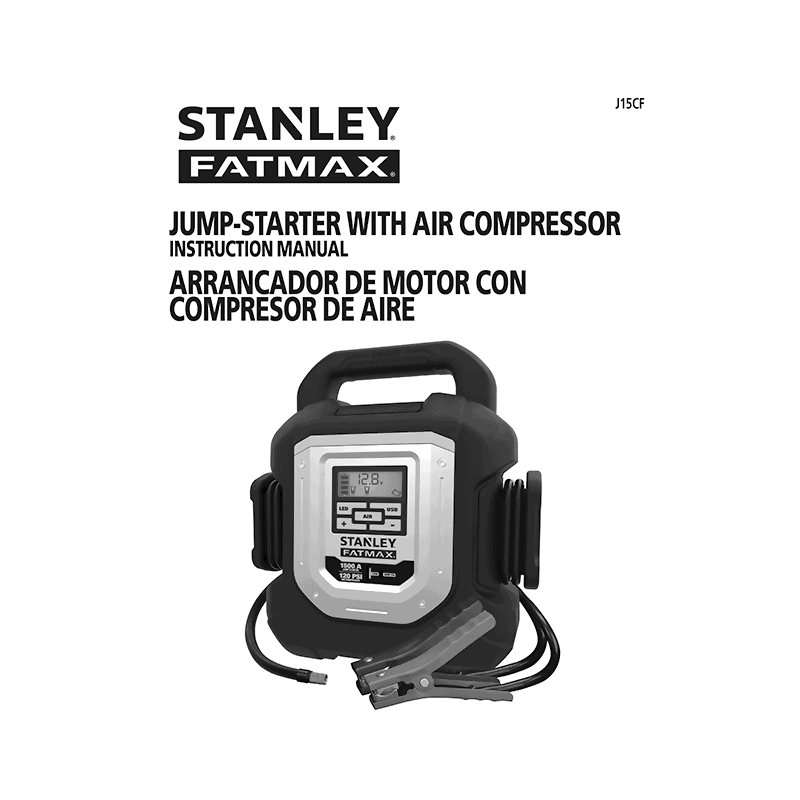

Stanley FATMAX J15CF 1500A Jump-Starter Instruction Manual
Download PDF user manual for Baccus Global / STANLEY FATMAX 1500 Peak Amp Jump Starter Model: J15CF with 120 PSI Air Compressor (EN|ES) 16 pages RD110823 2023 zip
Description
This PDF instruction manual is for the Stanley FatMax J15CF jump starter.
About the Item
Stanley J15CF FATMAX 1500 Peak Amp Jump Starter with 120 PSI Air Compressor
SPECIFICATIONS
– Boost Ampere: 1500A peak battery
– Battery type: Maintenance-free, sealed lead acid, 12VDC
– AC input: 14.5VDC, 800mA
– USB-C output: 5VDC 3A / 9VDC 2.77A (PD 25W Max.)
– USB-A output: 5VDC, 15W Max.
– USB-C & USB-A output simultaneously: 5VDC, 15W Max.
– Compressor maximum pressure: 120 PSI
Read and understand this instruction manual before using this unit.
Save this instruction manual for future reference.
Document(s) available
(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
Available languages
ENGLISH (EN) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
FEATURES
DIGITAL LCD SCREEN
SAFETY GUIDELINES / DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions
– Specific safety instructions for charging this unit
– Extension cords. Minimum gauge for cord sets.
– Specific safety instructions for jump starters
– Specific safety instructions for compressors
– Specific safety instructions for the USB power ports
– Personal safety
– Never attempt to jump-start or charge a frozen battery.
INTRODUCTION
OVERVIEW
– Common Actions and Unit Responses. The actions the turn the unit on and activate the LCD Screen.
VIEWING BATTERY STATUS
CHARGING/RECHARGING
– Charging/Recharging Using the Supplied AC Charger
JUMP-STARTER
– Procedure
– Procedure for jump-starting a NEGATIVE GROUNDED SYSTEM (negative battery terminal is connected to chassis) (MOST COMMON)
– Procedure for jump-starting POSITIVE GROUND SYSTEMS
PORTABLE COMPRESSOR
– Inflating Tires or Products With Valve Stems
– Inflating Other Inflatables Without Valve Stems
USB PORTS
– Using the USB Ports
LED AREA LIGHT
– How to turn on/off the Area Light
CARE AND MAINTENANCE
BATTERY
– Safe Battery Disposal
TROUBLESHOOTING
– Unit will not charge
– Unit fails to jump-start
– Portable compressor will not inflate
– USB power port will not power appliance
– LED area light does not come on
ACCESSORIES
TECHNICAL ASSISTANCE
WARRANTY
Why download the Manual?
This instruction manual provides all the information from BACCUS GLOBAL / STANLEY about the FATMAX J15CF jump starter, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
