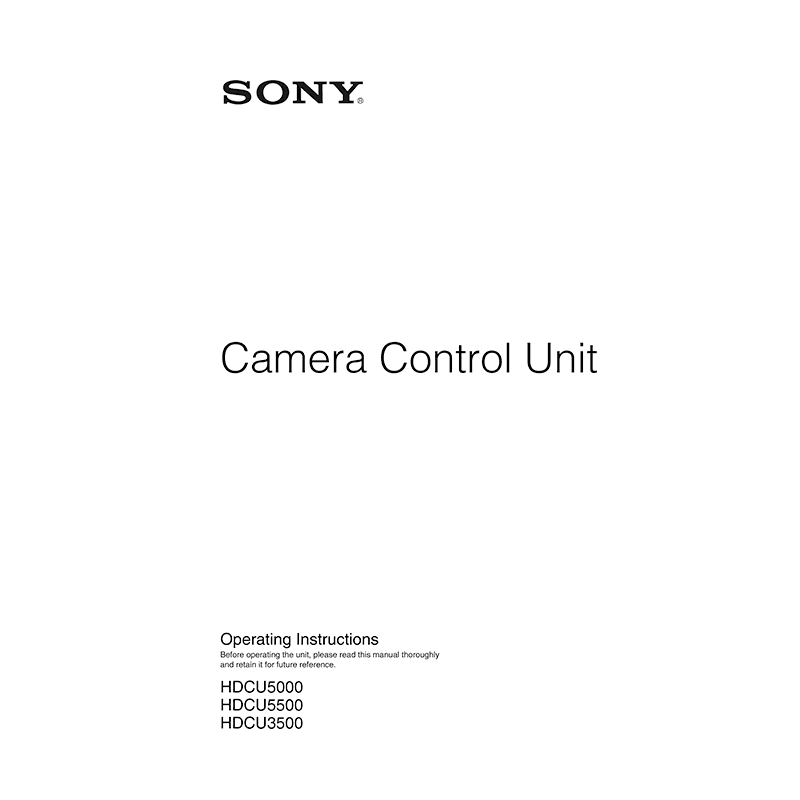

Sony HDCU3500 Camera Control Unit Operating Instructions
Download PDF user manual for Sony HDCU3500 Camera Control Unit (EN) 89 pages 5-006-304-12 (1) 2019 zip
Description
This PDF instruction manual is for the Sony HDCU3500 camera control unit.
About the Item
Sony HDCU3500 Camera Control Unit
The HDCU5000/5500 Camera Control Unit connects to an HDC5000/5500 Color Camera, via an optical fiber cable, and carries out signal processing, provides an interface with external equipment, and supplies power to the camera.
The HDCU3500 Camera Control Unit connects to an HDC3500 Color Camera, HDC3100 Fiber Color Camera, or HDC2000-series HD Color Camera, via an optical fiber cable, and carries out signal processing, provides an interface with external equipment, and supplies power to the camera.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Document(s) available
(PDF) OPERATING INSTRUCTIONS
Available languages
ENGLISH (EN)
SUMMARY OF CONTENTS
– Overview
– Location and Function of Parts
– Status Display
– Settings Using the Menu of the Unit
– Settings Using the Web Menu
– Menu Tree
– Menu List
– Appendix
– Specifications
Why download the Manual?
This instruction manual provides all the information from SONY about the HDCU3500 camera control unit, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
