SN54LS90 TI Decade Counter Data Sheet

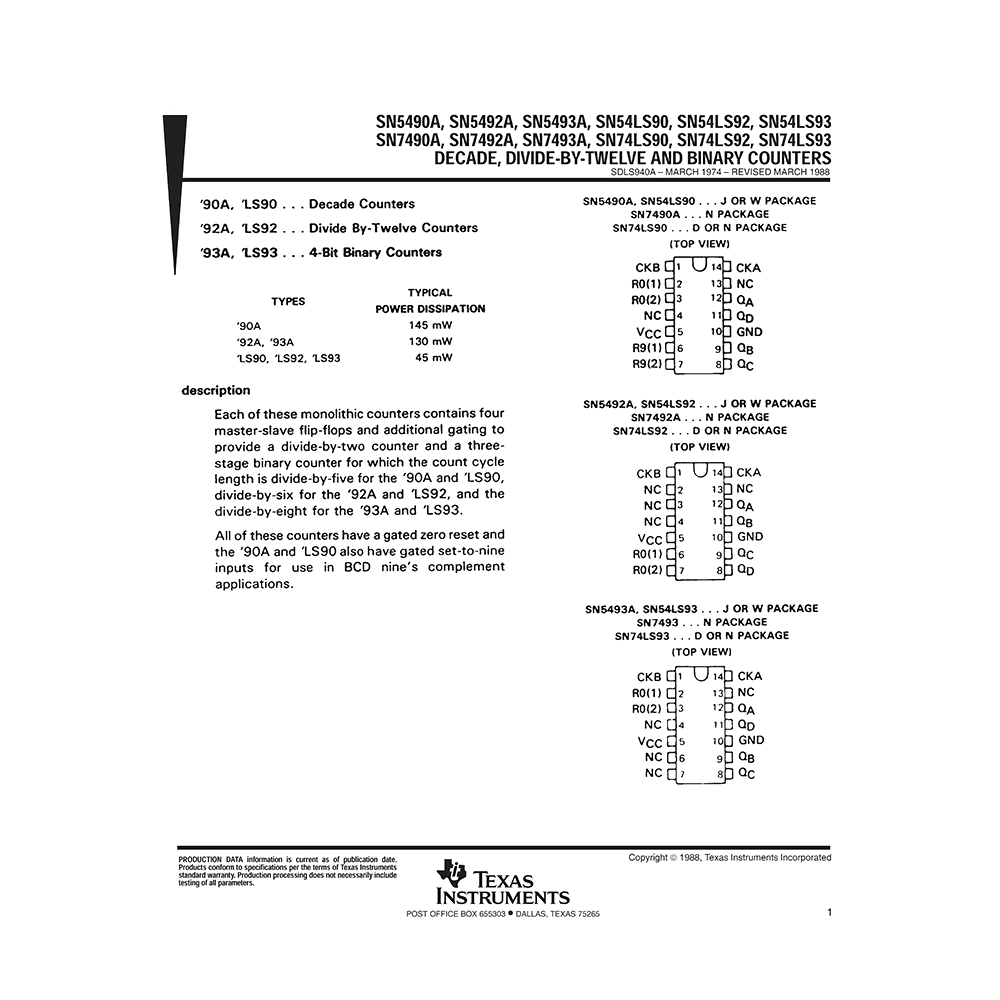

Download PDF datasheet for Texas Instruments SN54LS90 Decade Counter (EN) 26 pages SDLS940A 1988 zip
Description
This PDF data sheet is for the Texas Instruments SN54LS90 Decade Counter.
Texas Instruments SN54LS90 Decade Counter
This monolithic counter contains four master-slave flip-flops and additional gating to provide a divide-by-two counter and a three-stage binary counter for which the count cycle length is divided-by-five for the ‘LS90.
(PDF) DATASHEET in English (EN) languages.
CONTENTS:
– Description
– Pinout
– Logic symbols
– Count sequence
– Function table
– Logic diagrams
– Schematics of inputs and outputs
– Absolute maximum ratings over operating free-air temperature range
– Recommended operating conditions
– Electrical characteristics over recommended operating free-air temperature range
– Switching characteristics
– Parameter measurement information
– Packaging information
– Mechanical Data
– Generic Package View
– Package Outline
– Example Board Layout
– Land Pattern Data
This data sheet provides all the information (according to the table of contents) from Texas Instruments about the SN54LS90 Decade Counter. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
