SN54LS08 TI Quadruple 2-Input Positive-AND Gate Data Sheet

Description

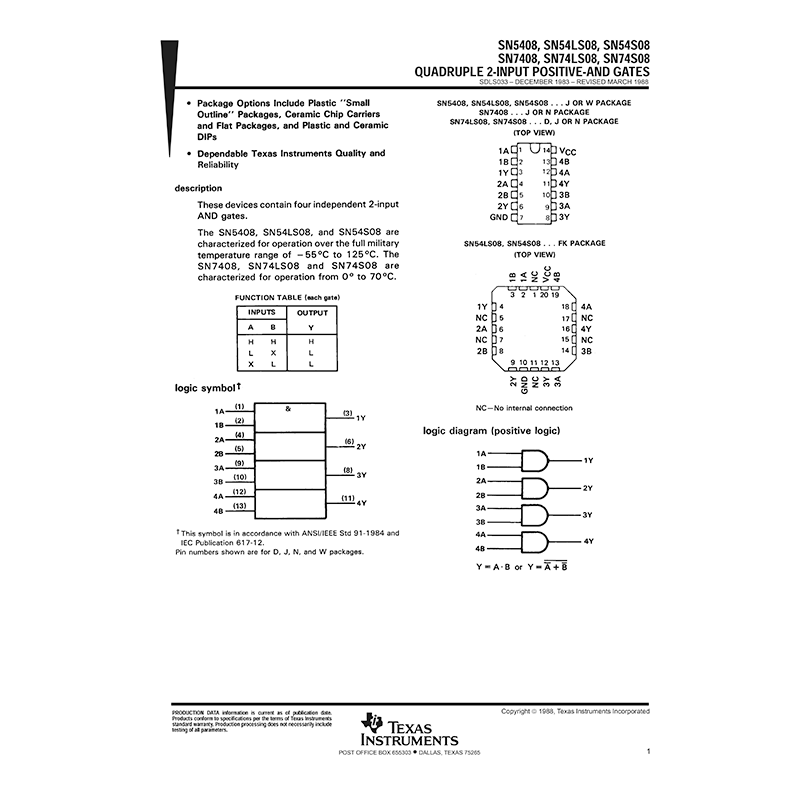

This PDF data sheet is for the TI SN54LS08 Quadruple 2-Input Positive-AND Gate.

Texas Instruments SN54LS08 Quadruple 2-Input Positive-AND Gate

This device contains four independent 2-input AND gates.

(PDF) DATASHEET in English (EN) languages.

CONTENTS:

– Description
– Logic symbol
– Pinout
– Logic diagram
– Schematics
– Absolute maximum ratings (supply voltage, input voltage, operating temperature range, storage temperature range)
– Recommended operating conditions (supply voltage, high-level input voltage, low-level input voltage, high-level output current, low-level output current, operating temperature)
– Electrical Characteristics
– Switching Characteristics
– Packaging information
– Mechanical data
– Generic package view
– Package outline
– Example Board Layout
– Land Pattern Data

This data sheet provides all the information (according to the table of contents) from Texas Instruments about the SN54LS08 Quadruple 2-Input Positive-AND Gate. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
