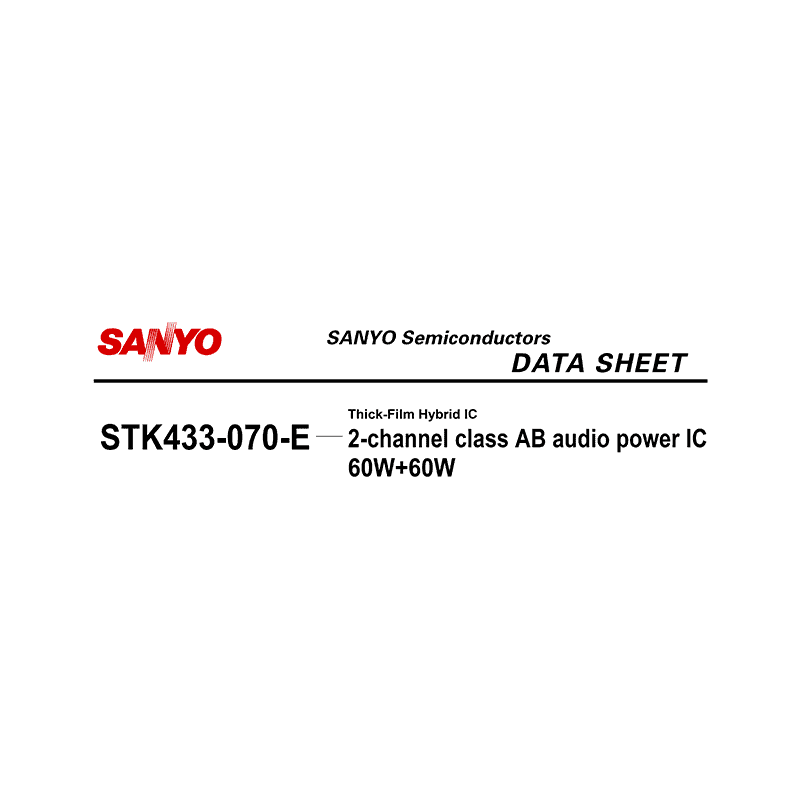

STK433-070-E Sanyo Audio Power Amplifier Data Sheet

Description

This PDF datasheet is for the Sanyo STK433-070-E audio power amplifier IC.

About the Item

Sanyo STK433-070-E 60W+60W 2-Channel Class AB Audio Power IC

The STK433-070-E is a hybrid IC designed to be used in 60W x 2ch class AB audio power amplifiers.

APPLICATIONS
– Audio power amplifiers.

FEATURES
– Pin-to-pin compatible outputs ranging from 30W to 60W.
– Can be used to replace the STK433-100 series (80W to 150W/2ch)and STK433-200/-300 series (3-channel) due to its pin compatibility
– Miniature package (47.0mm x 25.6mm x 9.0mm)
– Output load impedance: RL = 6 Ohms to 4 Ohms supported
– Allowable load shorted time: 0.3 second
– Allows the use of predesigned applications for standby and mute circuits.

SERIES MODELS
– STK433-030-E
– STK433-040-E
– STK433-060-E
– STK433-070-E

Document(s) available

(PDF) DATASHEET

Available languages

ENGLISH (EN)

SUMMARY OF CONTENTS

– Specifications
– Absolute Maximum Ratings
– Operating Characteristics
– Designated transformer power supply (MG-200 equivalent)
– Package Dimensions
– Internal Equivalent Circuit
– Application Circuit Example
– Sample PCB Trace Pattern
– STK433-000/-200/STK403-100Sr PCB PARTS LIST
– Pin Assignments
– Evaluation Board Characteristics
– STK433-000 Series Standby Control, Mute Control, Load-short Protection & DC offset Protection application
– STK433-000 Series Application Explanation
– STK433-000 Series BTL Application

Why download the Datasheet?

This datasheet provides all the information from SANYO about the STK433-070-E audio power amplifier IC, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
