STK4199MK2 Sanyo Audio Power Amplifier Data Sheet
Download PDF datasheet for Sanyo STK4199MK2 25W+50W+25W Audio Power Amplifier IC (EN) 7 pages EN4218A 20193YO/D0992YO 5-3054 No.4218 zip
Description
This PDF datasheet is for the Sanyo STK4199MK2 audio power amplifier IC.
About the Item

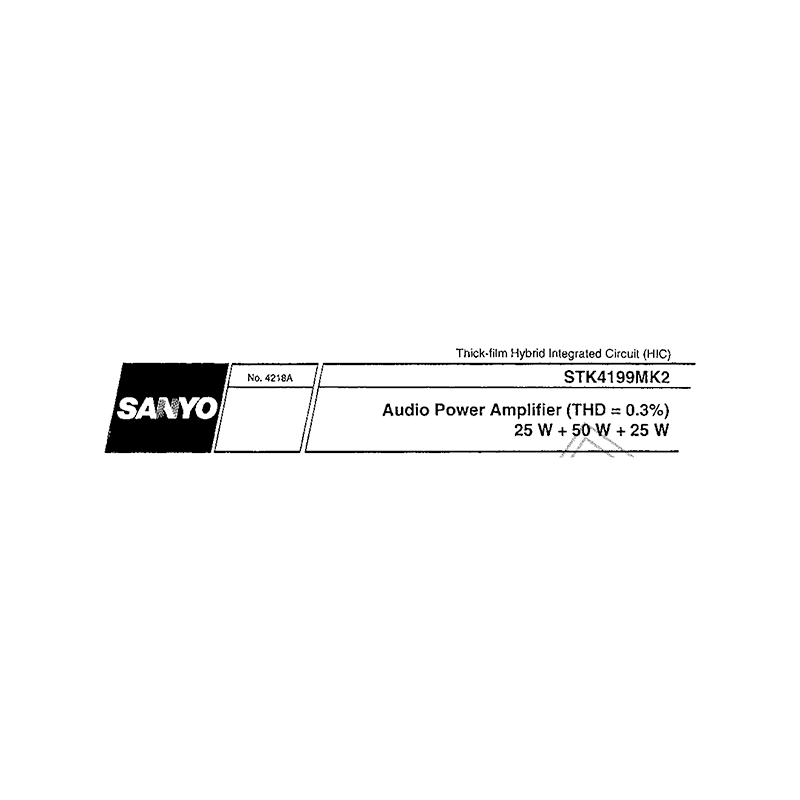

Sanyo STK4199MK2 25W+50W+25W Audio Power Amplifier IC
Document(s) available
(PDF) DATASHEET
Available languages
ENGLISH (EN)
SUMMARY OF CONTENTS
– Package Dimensions. Case Outline.
– Specifications
– Absolute Maximum Ratings
– Operating Characteristics
– Specified transformer power supply (RP-25 Equivalent / MG-200 Equivalent)
– Equivalent Circuit
– Application Circuit
– PCB Pattern
– Pin Compatibility with other Series
– STK4199MK2 Heat Radiation Design Considerations
