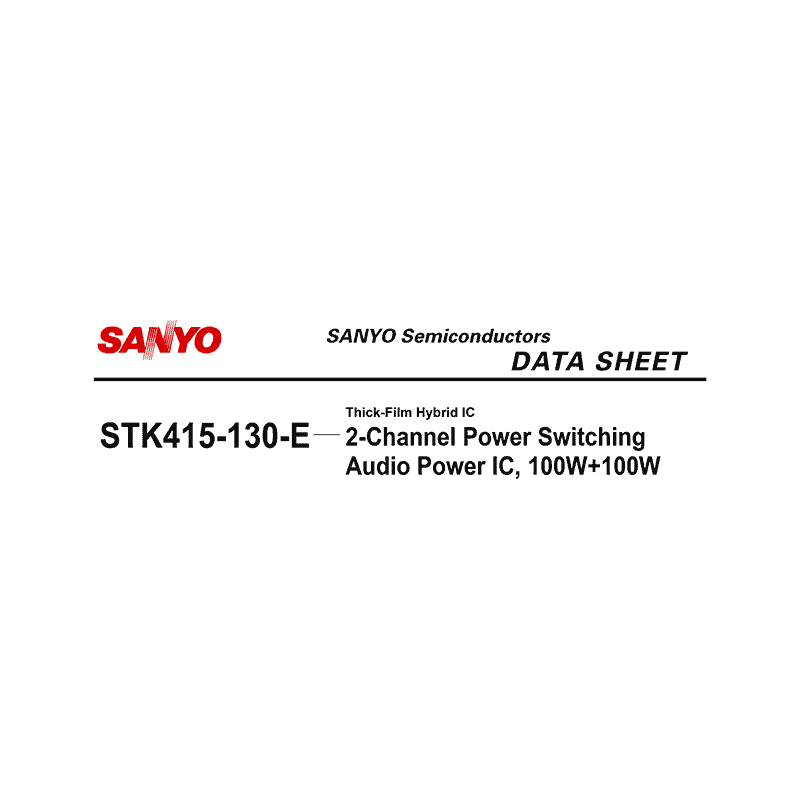

Sanyo STK415-130-E Audio Power Amplifier Data Sheet
Download PDF datasheet for Sanyo STK415-130-E 100W+100W Two-Channel Power Switching Audio Power IC (EN) 12 pages EN*A1500 70809HKIM No. A1500 zip
Description
This PDF datasheet is for the Sanyo STK415-130-E audio power amplifier IC.
About the Item
Sanyo STK415-130-E 100W+100W 2-Channel Power Switching Audio Power IC
The STK415-130-E is a class H audio power amplifier hybrid IC that features a built-in power supply switching circuit.
This IC provides high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power devices according to the detected level of the input audio signal.
APPLICATIONS
– Audio power amplifiers.
FEATURES
– Pin-to-pin compatible outputs ranging from 80W to 180W.
– Can be used to replace the STK416-100 series (3-channel models) and the class-AB series (2, 3-channel models) due to its pin compatibility.
– Pure complementary construction by new Darlington power transistors
– Output load impedance: RL = 8 Ohm to 4 Ohm supported
– Using insulated metal substrate that features superlative heat dissipation characteristics that are among the highest in the industry.
Document(s) available
(PDF) DATASHEET
Available languages
ENGLISH (EN)
SUMMARY OF CONTENTS
– Series Models
– Specifications
– Absolute maximum ratings
– Electrical Characteristics
– Designated transformer power supply (MG-250 equivalent)
– Designated transformer power supply (MG-200 equivalent)
– Package Dimensions. Case outline.
– Internal Equivalent Circuit
– Application Circuit Example
– Recommended Values for Application Parts (for the test circuit)
– Sample PCB Trace Pattern
– Parts List: STK415, 416-100Sr PCB Parts List
– Pin Assignments
– Evaluation Board Characteristics
– Thermal Design Example for STK415-130-E (RL = 8Ohms)
– STK415-100 Series Stand-by control, Mute control, Load-short protection & DC offset protection application
– STK415-100 Series Application explanation
– STK415-100 Series BTL Application
Why download the Datasheet?
This datasheet provides all the information from SANYO about the STK415-130-E audio power amplifier IC, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
