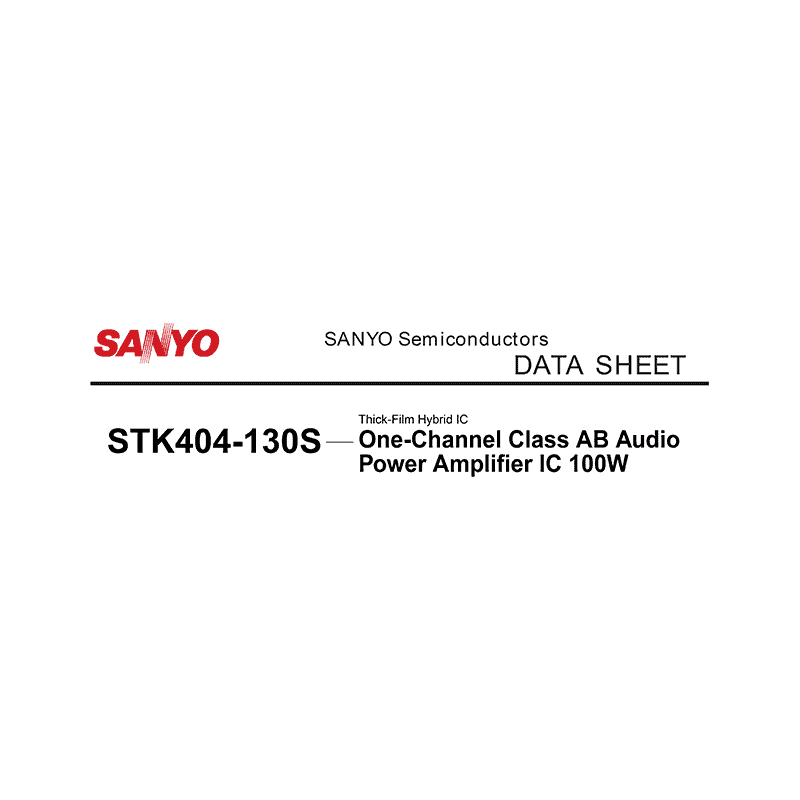

Sanyo STK404-130S Audio Power Amplifier Data Sheet

Description

This PDF datasheet is for the Sanyo STK404-130S audio power amplifier IC.

About the Item

Sanyo STK404-130S 100W One-Channel Class AB Audio Power Amplifier IC

The STK404-000S series products are audio power amplifier hybrid ICs that consist of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYO’s unique insulated metal substrate technology (IMST). The adoption of a newly-developed low thermal resistance substrate allows this series of devices to be provided in miniature packages significantly more compact than earlier Sanyo products with similar specifications.

FEATURES
– Series of pin compatible power amplifiers ranging from 45W to 180W (10%/1kHz) devices. The same printed circuit board can be used depending on the output power grade.
– Miniature packages
– Output load impedance L =6 Ohms
– Allowable load shorted time: 0.3 seconds
– Built-in thermal protection circuit
– Supports the use of standby, muting, and load shorting protection circuits.

Document(s) available

(PDF) DATASHEET

Available languages

ENGLISH (EN)

SUMMARY OF CONTENTS

– Series Organization
– Specifications
– Maximum Ratings
– Operating Characteristics
– Designated Transformer Power Supply (MG-250 equivalent)
– Package Dimensions. Case Outline.
– Internal Equivalent Circuit
– Sample Application Circuit
– Thermal Design Example

Why download the Datasheet?

This datasheet provides all the information from SANYO about the STK404-130S audio power amplifier IC, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
