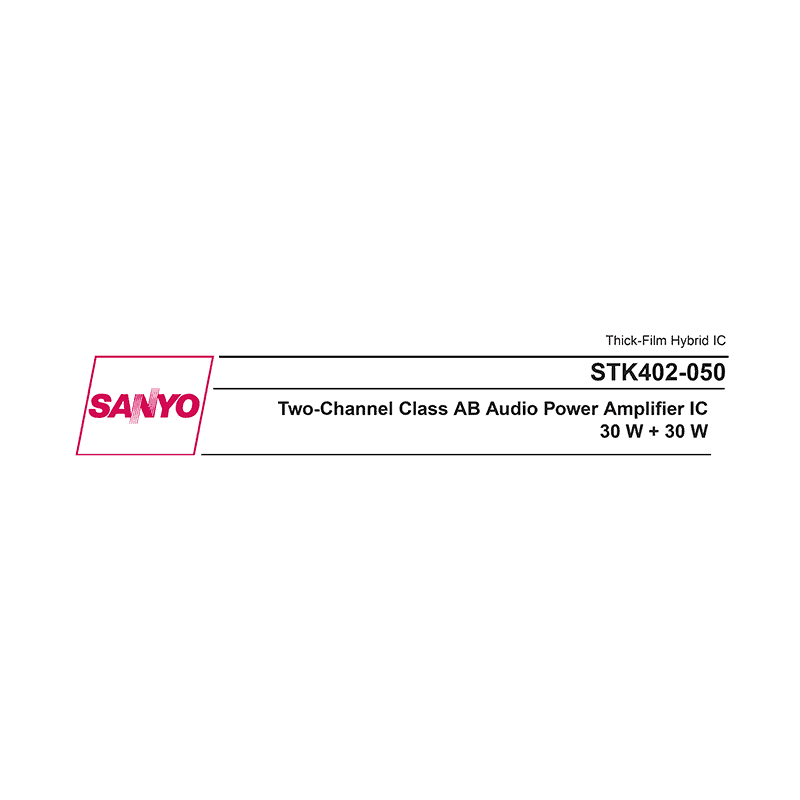

Sanyo STK402-050 Audio Power Amplifier Data Sheet
Download PDF datasheet for Sanyo STK402-050 30W+30W Two-Channel Class AB Audio Power Amplifier IC (EN) 4 pages ENN7063 N2502AS (OT) No. 7063 zip
Description
This PDF datasheet is for the Sanyo STK402-050 audio power amplifier IC.
About the Item
Sanyo STK402-050 30W+30W Two-Channel Class AB Audio Power Amplifier IC
The STK402-000 series products are audio power amplifier hybrid ICs that consist of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYO’s unique insulated metal substrate technology (IMST). SANYO has adopted a new low thermal resistance substrate in these products to reduce the package size by about 60% as compared to the earlier SANYO STK407-000 series.
FEATURES
– Series of pin compatible power amplifiers ranging from 20W x 2 channels to 120W x 2 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
– The pin arrangement is compatible with that of the 3-channel STK402-200 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
– Miniature packages
– Output load impedance = 6 Ohms
– Allowable load shorted time: 0.3 seconds
– Supports the use of standby, muting, and load shorting protection circuits.
Document(s) available
(PDF) DATASHEET
Available languages
ENGLISH (EN)
SUMMARY OF CONTENTS
– Package Dimensions
– Series Organization
– Specifications
– Maximum Ratings
– Operating Characteristics
– Stipulated Transformer Power Supply (RP-25 equivalent)
– Internal Equivalent Circuit
– Sample Application Circuit
Why download the Datasheet?
This datasheet provides all the information from SANYO about the STK402-050 audio power amplifier IC, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
