Sanyo STK402-020 Audio Power Amplifier Data Sheet
Download PDF datasheet for Sanyo STK402-020 15W+15W Two-Channel Class AB Audio Power Amplifier IC (EN) 4 pages ENN7060A PS No.7060 zip
Description
This PDF datasheet is for the Sanyo STK402-020 audio power amplifier IC.
About the Item

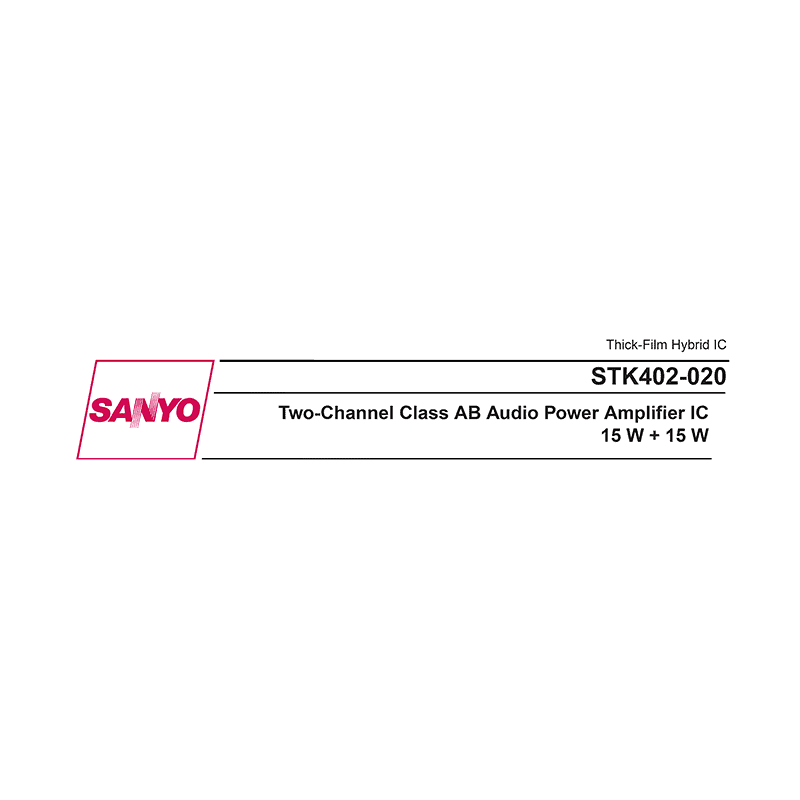

Sanyo STK402-020 15W+15W Two-Channel Class AB Audio Power Amplifier IC
FEATURES
– Series of pin compatible power amplifiers ranging from 20W x 2 channels to 120W x 2 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
– The pin arrangement is compatible with that of the 3-channel STK402-200 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
– Miniature packages
– Output load impedance = 6 Ohms
– Allowable load shorted time: 0.3 seconds
– Supports the use of standby, muting, and load shorting protection circuits.
Document(s) available
(PDF) DATASHEET
Available languages
ENGLISH (EN)
SUMMARY OF CONTENTS
– Package Dimensions
– Series Organization
– Specifications
– Maximum Ratings
– Operating Characteristics
– Stipulated Transformer Power Supply (RP-22 equivalent)
– Internal Equivalent Circuit
– Sample Application Circuit
