RGP102 Diotec 1A High Reliability Fast Recovery Diode Data Sheet

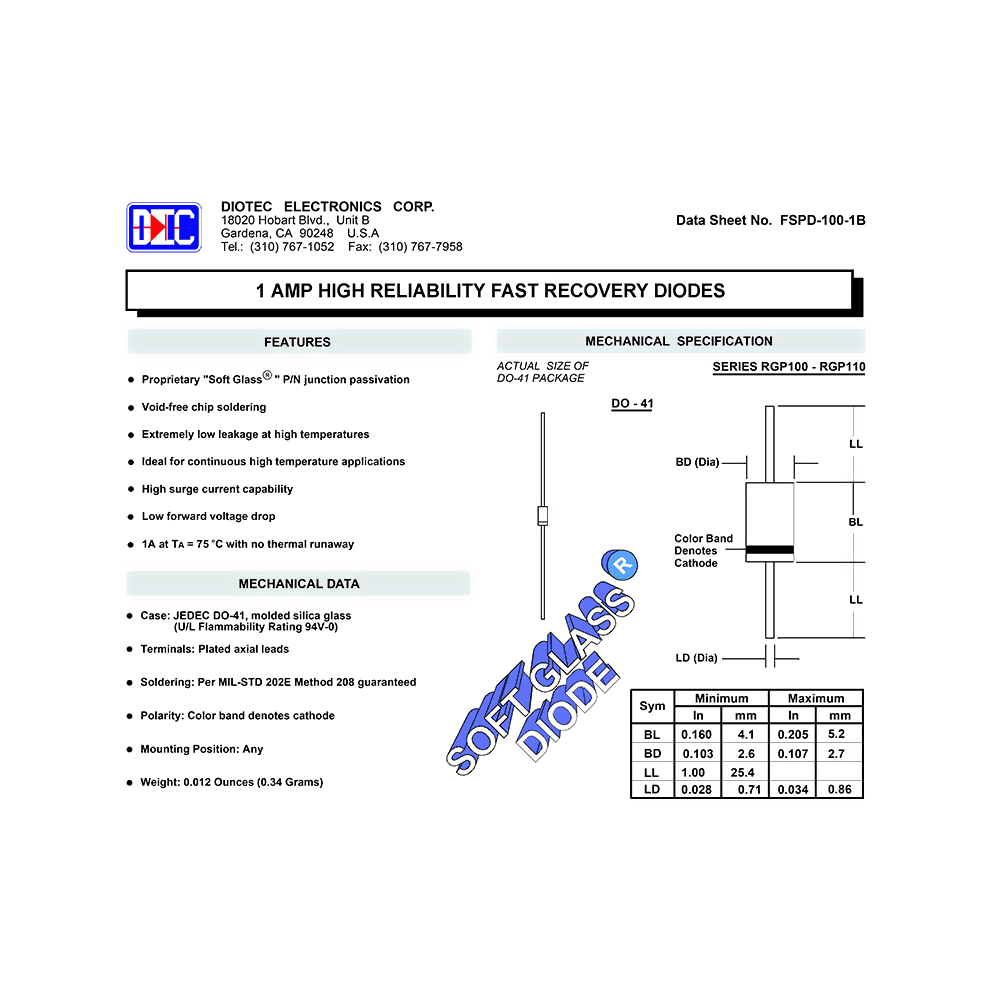

Download PDF datasheet for Diotec Electronics RGP102 1 Ampere 200 Volt High Reliability Fast Recovery Diode (EN) 2 pages FSPD-100-1B zip

SKU: RGP102DIOTECELECTRONICSDS Category: Brand:

Description

This PDF data sheet is for the Diotec Electronics RGP102 1 Ampere 200 Volt High Reliability Fast Recovery Diode.

Diotec Electronics RGP102 1 Ampere 200 Volt High Reliability Fast Recovery Diode

FEATURES:
– Proprietary “Soft Glass”(R) P/N junction passivation
– Void-free chip soldering
– Extremely low leakage at high temperatures
– Ideal for continuous high temperature applications
– High surge current capability
– Low forward voltage drop
– 1A at TA = 75 C with no thermal runaway

(PDF) DATASHEET in English (EN) language.

CONTENTS:

MECHANICAL DATA

MECHANICAL SPECIFICATION

RGP102 PINOUT: Color Band Denotes Cathode

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
– Maximum DC Blocking Voltage
– Maximum RMS Voltage
– Maximum Peak Recurrent Reverse Voltage
– Average Forward Rectified Current
– Peak Forward Surge Current
– Maximum Forward Voltage
– Maximum Reverse Recovery Time
– Maximum Average DC Reverse Current
– Typical Thermal Resistance
– Typical Junction Capacitance
– Operating and Storage Temperature Range

RATING & CHARACTERISTIC CURVES
– Figure 1. Forward Current Derating Curve
– Figure 2. Maximum Non-Repetitive Surge Current
– Figure 3. Typical Forward Characteristic
– Figure 4. Typical Junction Capacitance
– Figure 5. Reverse Recovery Test Setup And Time Characteristic

This datasheet provides all the information (according to the table of contents) from Diotec Electronics about the RGP102 1 Ampere 200 Volt High Reliability Fast Recovery Diode. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
