POS-900W Mini-Circuits 500-900MHz Voltage Controlled Oscillator Data Sheet

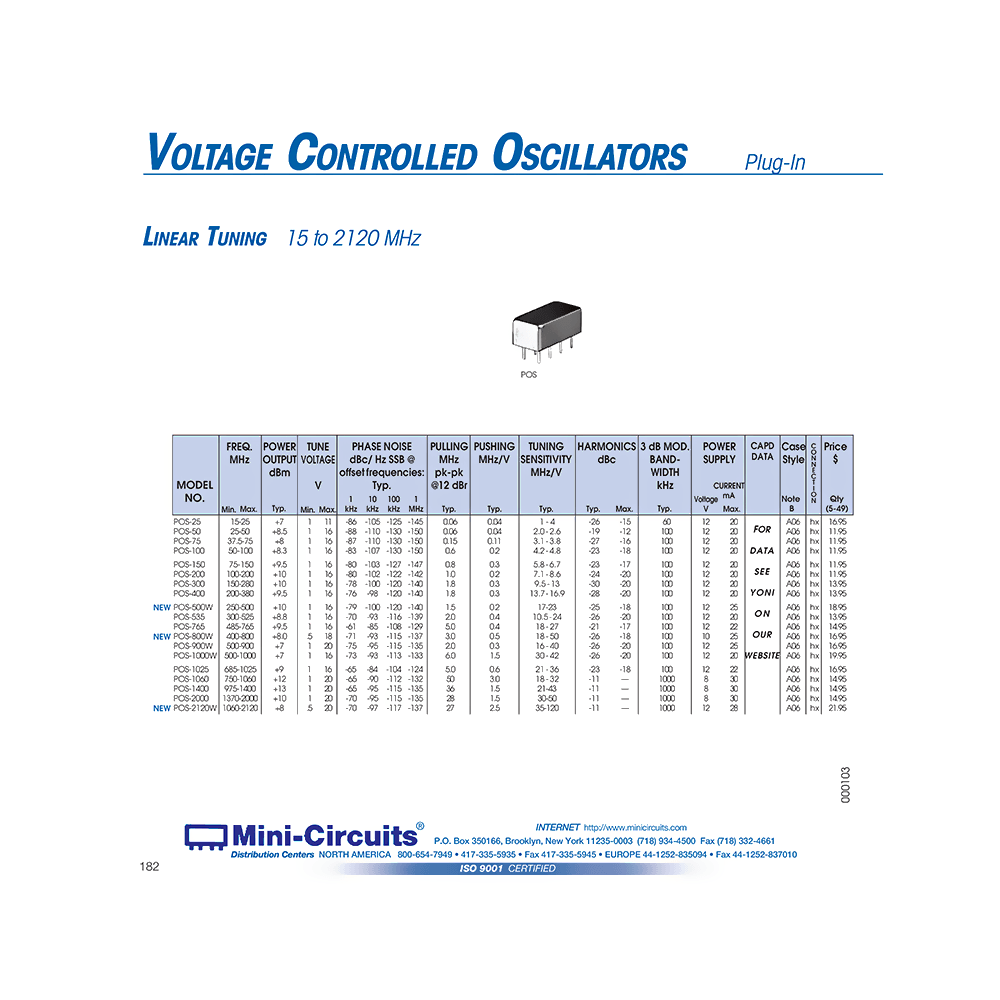

Download Datasheet for Mini-Circuits POS-900W Plug-In Linear Tuning 500-900MHz Voltage Controlled Oscillator [2 pages pdf]
Plug-In Linear Tuning VCO
– Octave bandwidth range (typ.)
– Linear tuning
– Low phase noise
– Excellent harmonic suppression
– Output suitable for LO drive to mixers
– Low power consumption, typically 190 mW (most models)
– Usable with +15V supply for higher power output, typically 2 dB
– Useful in digital cordless phones, cellular up-and-down converters, CATV distribution and set top converters, wideband frequency synthesizers, test instruments, signal generators and agile communications systems
ABSOLUTE MAXIMUM SUPPLY VOLTAGE AND TUNING VOLTAGE
