P600A Vishay 6A 50V Rectifier Data Sheet

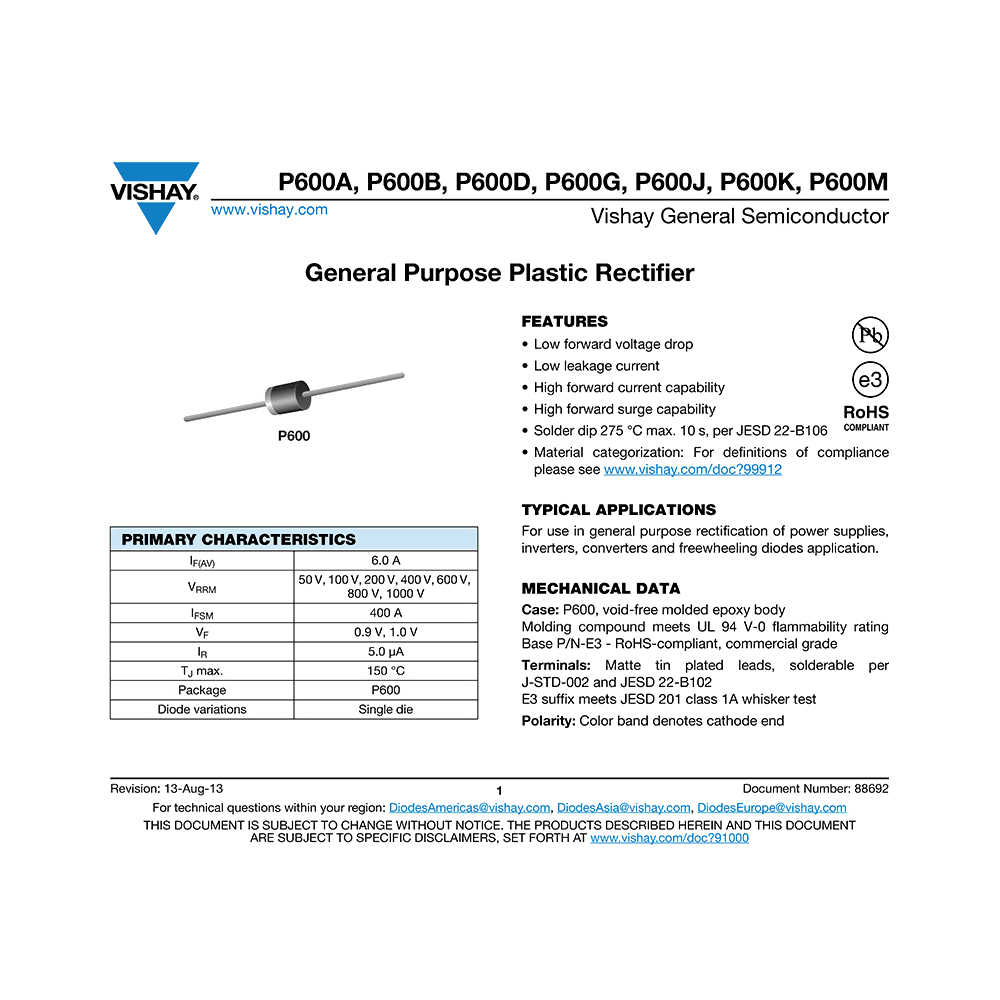

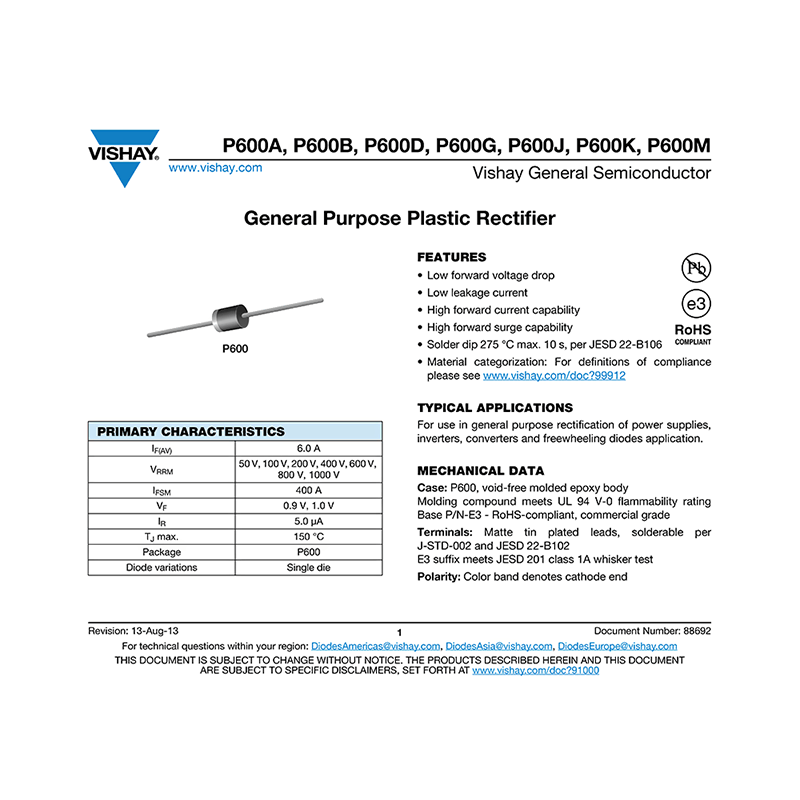

Download PDF datasheet for Vishay Semiconductors P600A 6A 50V General Purpose Plastic Rectifier (EN) 4 pages 88692 2013 zip

SKU: VISHAYP600ADS2013 Category: Brand:


This PDF data sheet is for the Vishay P600A 6A 50V General Purpose Plastic Rectifier.

Vishay General Semiconductor P600A 6A 50V General Purpose Plastic Rectifier

– Low forward voltage drop
– Low leakage current
– High forward current capability
– High forward surge capability
– Solder dip 275 deg C max. 10 s, per JESD 22-B106

For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application.

Case: P600, void-free molded epoxy body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 – RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test

Polarity: Color band denotes cathode end

(PDF) DATASHEET in English (EN) language.


– Primary Characteristics
– Maximum Ratings
– Maximum repetitive peak reverse voltage
– Maximum RMS voltage
– Maximum DC blocking voltage
– Maximum average forward rectified current
– Maximum Peak forward surge current
– Maximum Operating junction and storage temperature
– Electrical Characteristics
– Package Outline Dimensions

Fig. 5 – Typical Reverse Characteristics
Fig. 6 – Typical Transient Thermal Impedance
