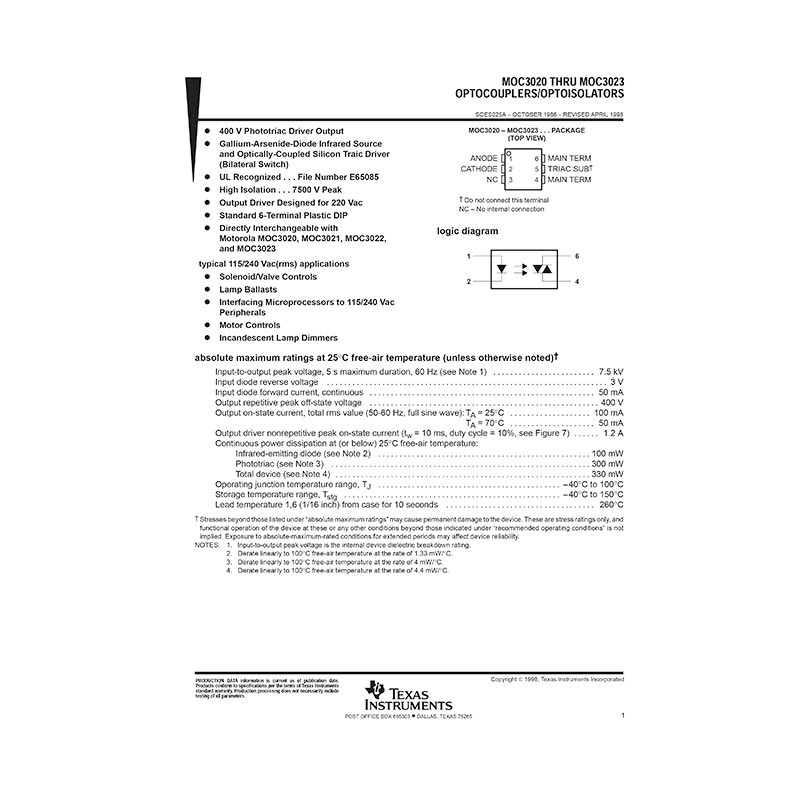

MOC3020 TI Optocoupler Data Sheet
Download Datasheet for Texas Instruments MOC3020 Optocoupler/Optoisolator [7 pages SOES025A 1998 pdf/zip]
Description
DATASHEET CONTAINS:
– 400 V Phototriac Driver Output
– Gallium-Arsenide-Diode Infrared Source and Optically-Coupled Silicon Traic Driver (Bilateral Switch)
– UL Recognized – File Number E65085
– High Isolation – 7500 V Peak
– Output Driver Designed for 220 Vac
– Standard 6-Terminal Plastic DIP
– Directly Interchangeable with Motorola MOC3020 typical 115/240 Vac(rms) applications
– Solenoid/Valve Controls
– Lamp Ballasts
– Interfacing Microprocessors to 115/240 Vac Peripherals
– Motor Controls
– Incandescent Lamp Dimmers
MOC3020 PINOUT
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
PARAMETER MEASUREMENT INFORMATION
FIGURE 1. CRITICAL RATE OF RISE TEST CIRCUIT
TYPICAL CHARACTERISTICS
FIGURE 2. EMITTING-DIODE TRIGGER CURRENT (NORMALIZED) vs FREE-AIR TEMPERATURE
FIGURE 3. ON-STATE CHARACTERISTICS
FIGURE 4. NONREPETITIVE PEAK ON-STATE CURRENT vs PULSE DURATION
APPLICATIONS INFORMATION
FIGURE 5. RESISTIVE LOAD
FIGURE 6. INDUCTIVE LOAD WITH SENSITIVE-GATE TRIAC
FIGURE 7. INDUCTIVE LOAD WITH NONSENSITIVE-GATE TRIAC
MECHANICAL INFORMATION
FIGURE 8. PACKAGING SPECIFICATIONS
