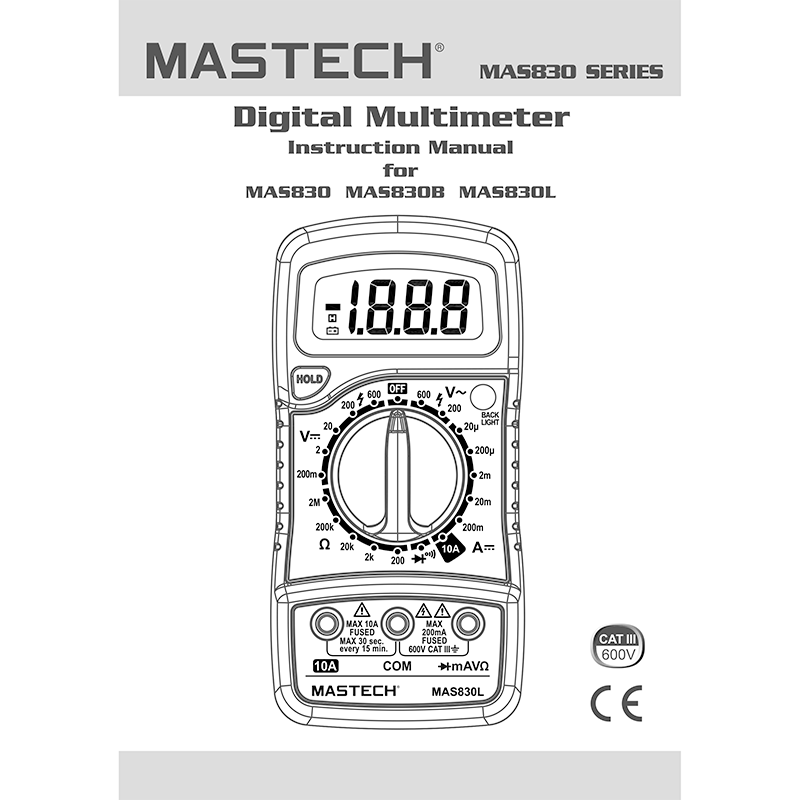

Mastech MAS830 Digital Multimeter Instruction Manual
Download User Manual for Mastech MAS830 / MAS830B / MAS830L Digital Multimeter [12 pages 00-05-3887 2016 pdf/zip]
The instrument of this series is a small hand-held 3 1/2 digital multimeter. Stable, highly reliable and anti-drop performance.
It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument.
It can be used to measure DC and AC voltage, DC current, resistance, diodes and for in-circuit continuity test.
TABLE OF CONTENT:
– Measurement features
– Front panel view
– Safety information
– Accuracy Indicators
– General features
– Direct voltage measurement
– Alternating voltage measurement
– Direct current measurement
– Resistance measurement
– Diode and circuit on-off measurement
– Operating instructions
– Notices before operation
– Replacement of battery and fuse
