LM741A National Semiconductor Operational Amplifier Data Sheet

Download PDF datasheet for National Semiconductor LM741A Operational Amplifier (EN) 7 pages DS009341 2000 zip

SKU: LM741ANATIONALSEMIDS2000 Category: Brand:

Description

This PDF data sheet is for the National Semiconductor LM741A Operational Amplifier.

National Semiconductor LM741A Operational Amplifier

The LM741 series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications.
The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations.

The LM741C is identical to the LM741/LM741A except that the LM741C has their performance guaranteed over a 0 deg C to +70 deg C temperature range, instead of −55 deg C to +125 deg C.

(PDF) DATASHEET in English (EN) language.

CONTENTS:

– Connection Diagrams
– Typical Application
– LM741A pinout
– Absolute Maximum Ratings
– Electrical Characteristics
– Schematic Diagram
– Physical Dimensions

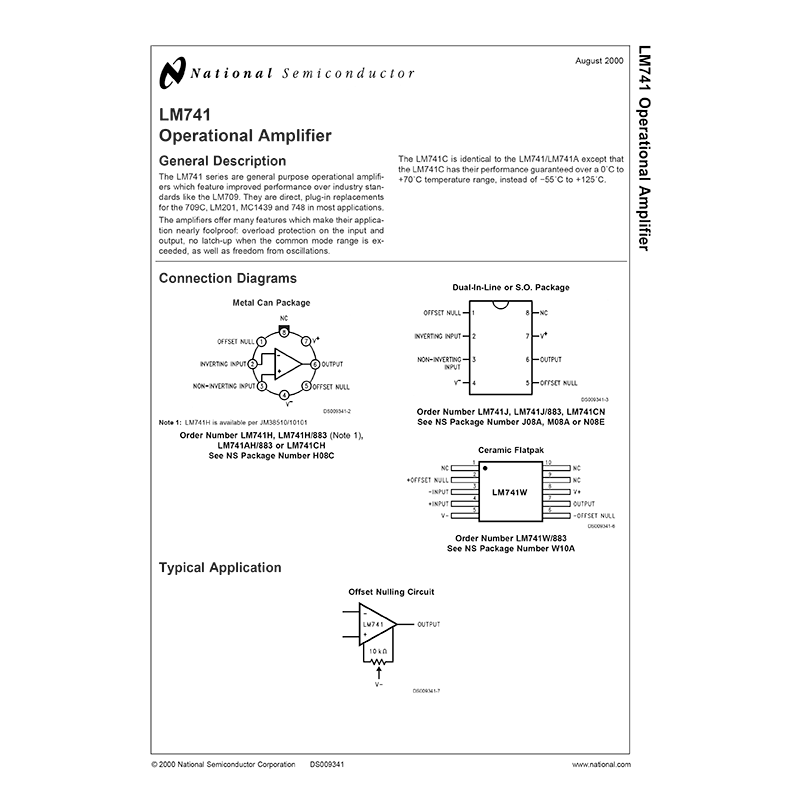

This datasheet provides all the information (according to the table of contents) from National Semiconductor about the LM741A Operational Amplifier. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
