Kenwood NX-3220 VHF Digital Transceiver Manual
Download PDF user and service manuals for JVCKenwood Corporation NX-3220 NEXEDGE 136-174MHz VHF 5W Portable Digital Transceiver (EN|ES|FR|DE|IT|PT|NL|EL|ZH|UK|TR) 84+224+52+2+70 pages B5A-2071-00, B5A-2072-00, B5A-2073-00, B5A-2530-20, B5A-2829-20, B5A-2829-30, B5A-2074-00/03, B5A-2074-00/04, B5A-2075-00/03, B5A-2075-00/04, B5A-2076-00/03, B5A-2076-00/04, B5A-2077-00/04 2017, 2018, 2019, 2020, 2021 zip
Description
These PDF manuals are for the Kenwood NX-3220 transceiver.
About the Item
Kenwood NX-3220 NEXEDGE 136-174MHz VHF 5W Portable Digital Transceiver
This versatile handheld radio supports both NXDN and DMR digital protocols as well as mixed digital & FM analog operation, enabling it to serve with distinction in a wide range of enterprise and operation critical applications. Compact yet designed with durability in mind, it’s packed with convenient features like Bluetooth for hands-free operation and built-in GPS.
Three different models are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customization.
Document(s) available

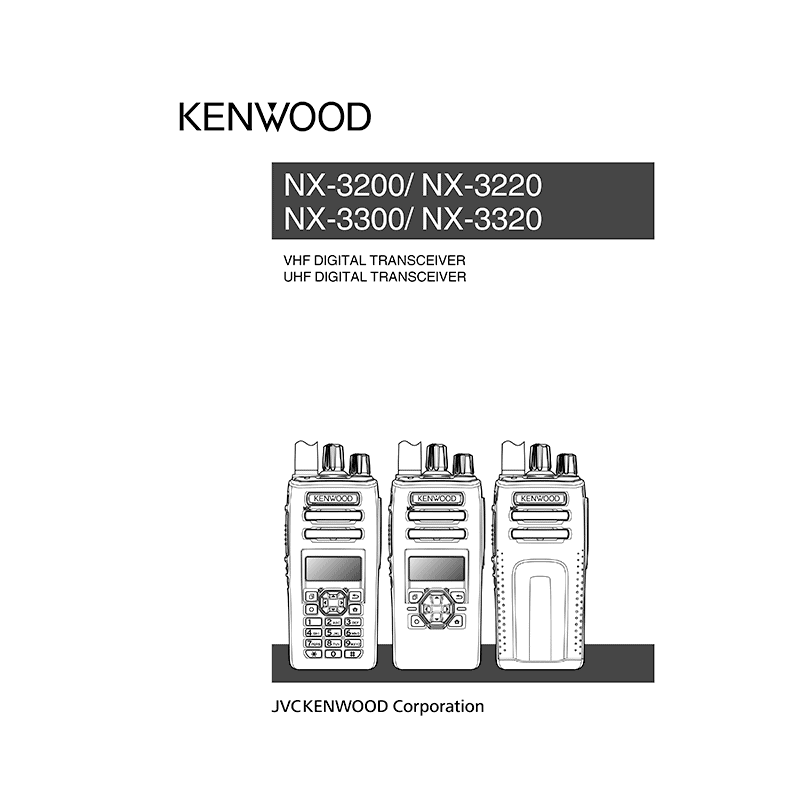

(PDF) USER GUIDE for KENWOOD NX-3220
Available languages
ENGLISH (EN) | ESPAÑOL (ES) | FRANÇAIS (FR) | DEUTSCH (DE) | ITALIANO (IT) | PORTUGUÊS (PT) | NEDERLANDS (NL) | ΕΛΛΗΝΙΚΆ (EL) | CHINESE (ZH) | УКРАЇНСЬКА (UK) | TÜRKÇE (TR)
SUMMARY OF CONTENTS
TERMINAL DESCRIPTIONS
PREPARATION
– Installing/ Removing Alkaline Batteries (Optional Battery Case)
– Installing/ Removing The (Optional) Antenna
– Installing The Belt Clip
– Installing The Cap Over The Universal Connector
– Installing The Cap Over The Speaker/Microphone Jacks
– Installing The (Optional) Speaker/
MICROPHONE OR HEADSET
ORIENTATION
– Buttons And Controls
– Display
(PDF) USER MANUAL for KENWOOD NX-3220
SUMMARY OF CONTENTS
BASIC OPERATION
PROGRAMMABLE FUNCTION LIST
FUNCTION OVERVIEW
FUNCTION DETAILS
– Scan
– DTMF Calls
– Trunking Calls
– Emergency Calls
– Scrambler / Encryption
– Signaling
– VOX
– FleetSync: Alphanumeric 2-Way Paging Function
OTHER FUNCTIONS
INDICATOR LIST
(PDF) QUICK REFERENCE CARD for KENWOOD NX-3220
SUMMARY OF CONTENTS
3 pages B5A-2078-00 2017
– Function Indicator List (with description)
– Programmable Function Key List
(PDF) SERVICE MANUAL for KENWOOD NX-3220 / NX-3320
SUMMARY OF CONTENTS
204 pages B5B-7267-00 No.RA053 Rev.001 2017/6
1. Precaution
2. Specific Service Instructions
3. Disassembly
4. Adjustment
5. Troubleshooting
Why download the Manual?
These manuals provide all the information from JVCKENWOOD CORPORATION about the NX-3220 transceiver, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
