KA7808A Fairchild 3-terminal 8V 1A Positive Voltage Regulator Data Sheet

Download PDF datasheet for Fairchild Semiconductor KA7808A 3-pin 8V 1A Positive Voltage Regulator (EN) 30 pages Rev.5.0 7/13/00 zip

SKU: FAIRCHILDKA7808ADS2000 Category: Brand:

Description

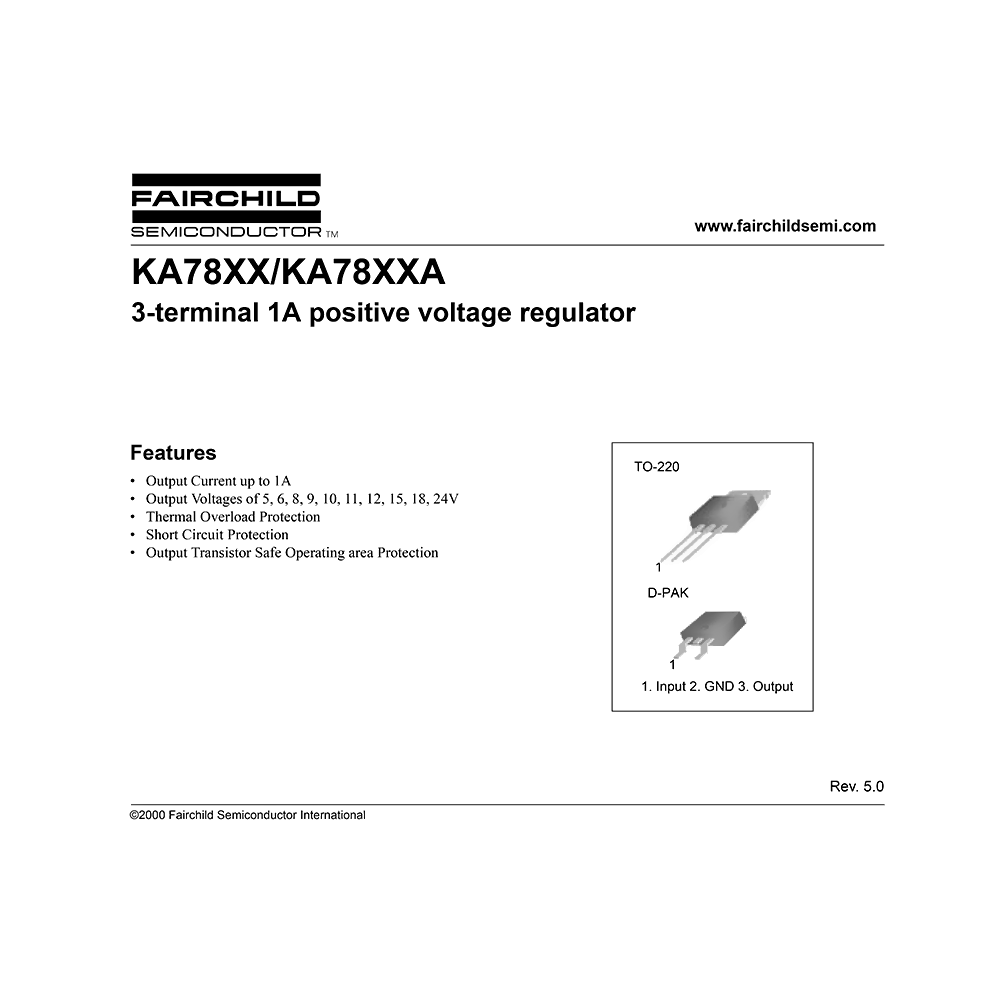

This PDF datasheet is for the Fairchild KA7808A Voltage Regulator.

Fairchild Semiconductor KA7808A 3-terminal 8V 1A Positive Voltage Regulator

KA7808A features:

* Output Current up to 1A
* Output Voltage of 8V
* Thermal Overload Protection
* Short Circuit Protection
* Output Transistor Safe Operating area Protection
* 2% Output Voltage Tolerance
* TO-220 package

The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

(PDF) DATASHEET (ENGLISH)

CONTENTS

KA7808A PINOUT

INTERNAL BLOCK DIAGRAM

ABSOLUTE MAXIMUM INPUT VOLTAGE

ABSOLUTE MAXIMUM OPERATING TEMPERATURE RANGE

ELECTRICAL CHARACTERISTICS

TYPICAL PERFOMANCE CHARACTERISTICS:
– Quiescent Current
– Peak Output Current
– Output Voltage
– Quiescent Current

TYPICAL APPLICATIONS:
– DC Parameters
– Load Regulation
– Ripple Rejection
– Fixed Output Regulator
– Constant Current Regulator
– Circuit for Increasing Output Voltage
– Adjustable Output Regulator
– High Current Voltage Regulator
– High Output Current with Short Circuit Protection
– Tracking Voltage Regulator
– Split Power Supply
– Negative Output Voltage Circuit
– Switching Regulator

MECHANICAL DIMENSIONS

Why download the Datasheet?

This datasheet provides all the information from Fairchild Semiconductor about the KA7808A voltage regulator, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
