KA7806R Fairchild 3-terminal 6V 1A Positive Voltage Regulator Data Sheet

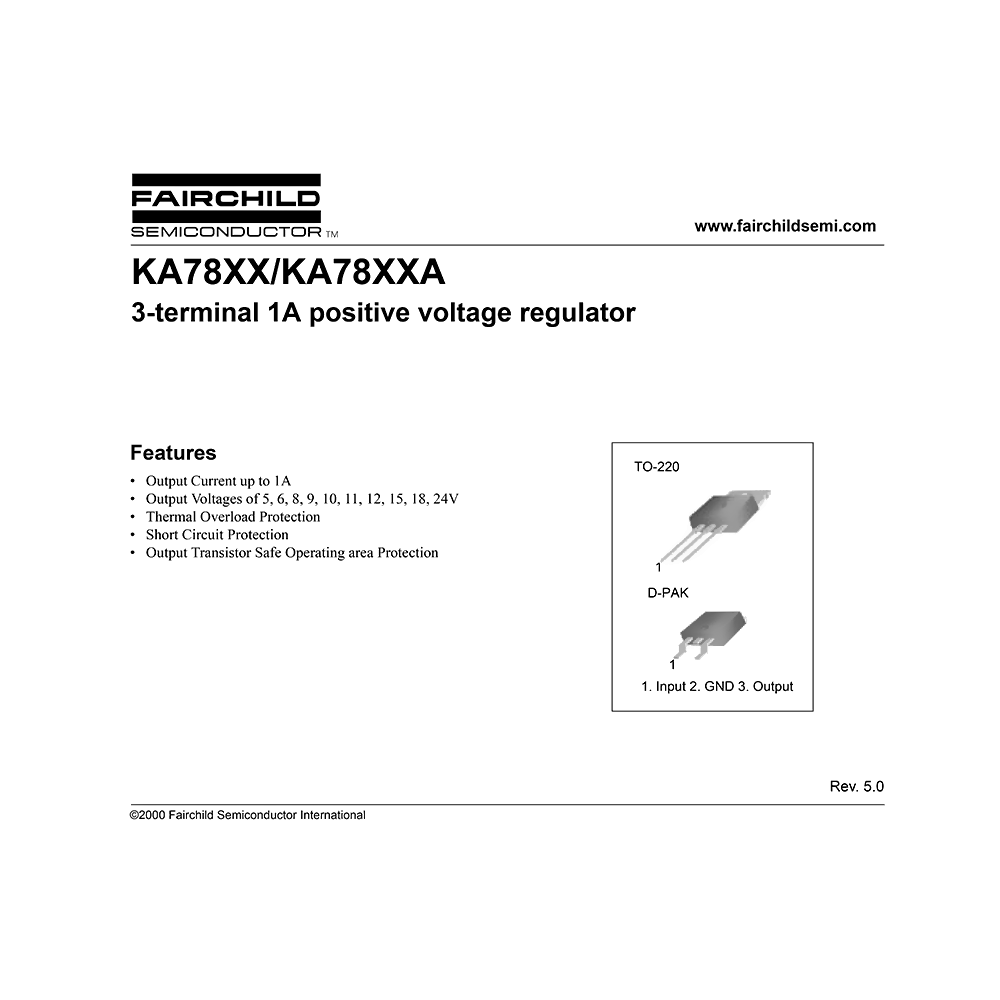

Download PDF datasheet for Fairchild Semiconductor KA7806R 3-pin 6V 1A Positive Voltage Regulator (EN) 30 pages Rev.5.0 7/13/00 zip
Description
This PDF datasheet is for the Fairchild KA7806R Voltage Regulator.
About the Item
Fairchild Semiconductor KA7806R 3-terminal 6V 1A Positive Voltage Regulator
KA7806R features:
* Output Current up to 1A
* Output Voltage of 6V
* Thermal Overload Protection
* Short Circuit Protection
* Output Transistor Safe Operating area Protection
* 4% Output Voltage Tolerance
* D-PAK package
The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
KA7806R PINOUT
INTERNAL BLOCK DIAGRAM
ABSOLUTE MAXIMUM INPUT VOLTAGE
ABSOLUTE MAXIMUM OPERATING TEMPERATURE RANGE
ELECTRICAL CHARACTERISTICS
TYPICAL PERFOMANCE CHARACTERISTICS:
– Quiescent Current
– Peak Output Current
– Output Voltage
– Quiescent Current
TYPICAL APPLICATIONS:
– DC Parameters
– Load Regulation
– Ripple Rejection
– Fixed Output Regulator
– Constant Current Regulator
– Circuit for Increasing Output Voltage
– Adjustable Output Regulator
– High Current Voltage Regulator
– High Output Current with Short Circuit Protection
– Tracking Voltage Regulator
– Split Power Supply
– Negative Output Voltage Circuit
– Switching Regulator
MECHANICAL DIMENSIONS
Why download the Datasheet?
This datasheet provides all the information from Fairchild Semiconductor about the KA7806R voltage regulator, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Datasheet?
Download it by clicking the button below
