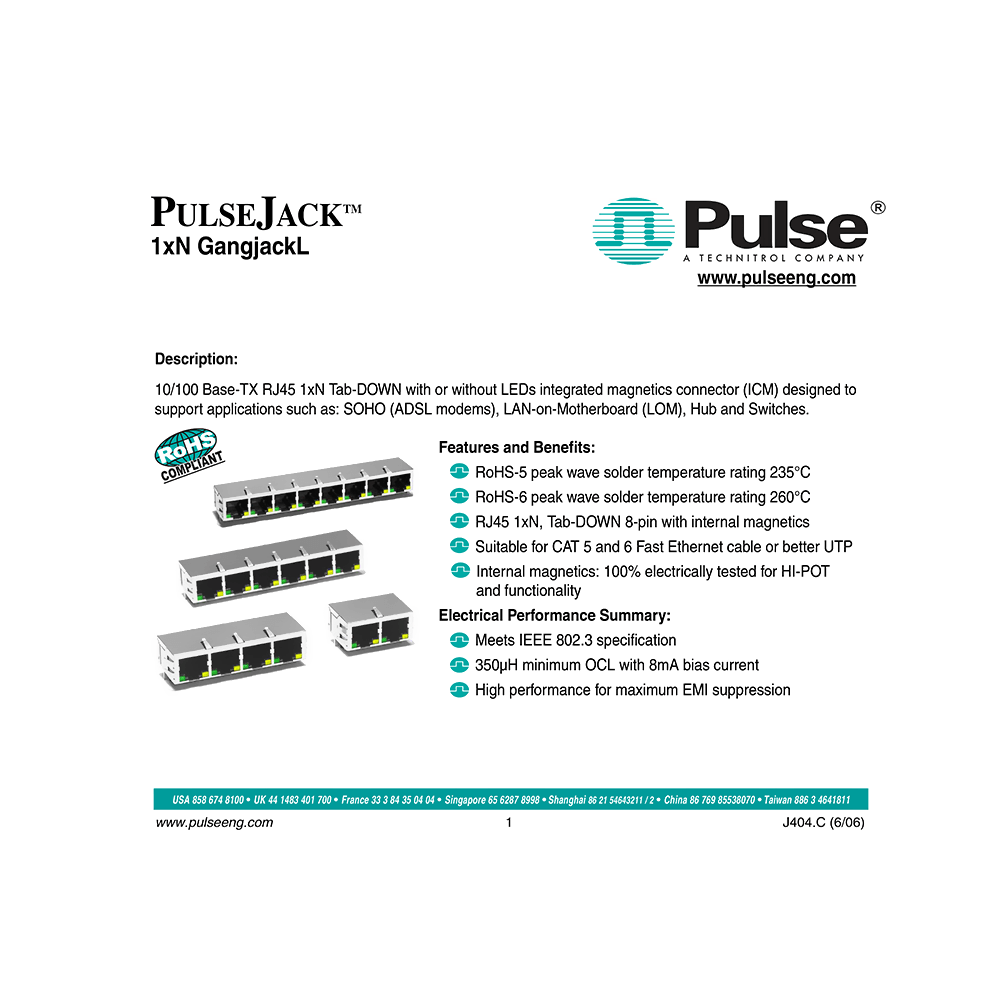

J8064E64 Pulse 10/100 Base-TX RJ45 8-pin Integrated Magnetics Connector Data Sheet
Download Datasheet for Pulse J8064E64 10/100 Base-TX RJ45 8-pin Integrated Magnetics Connector [6 pages J404.C (6/06) pdf]
PulseJack 10/100 Base-TX RJ45 1xN GangjackL Tab-DOWN without LEDs integrated magnetics connector (ICM) designed to support applications such as: SOHO (ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.
FEATURES AND BENEFITS:
– RoHS-5 peak wave solder temperature rating 235 deg C
– RoHS-6 peak wave solder temperature rating 260 deg C
– RJ45 1xN, Tab-DOWN 8-pin with internal magnetics
– Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
– Internal magnetics: 100% electrically tested for HI-POT and functionality
ELECTRICAL PERFORMANCE SUMMARY:
– Meets IEEE 802.3 specification
– 350uH minimum OCL with 8mA bias current
– High performance for maximum EMI suppression
