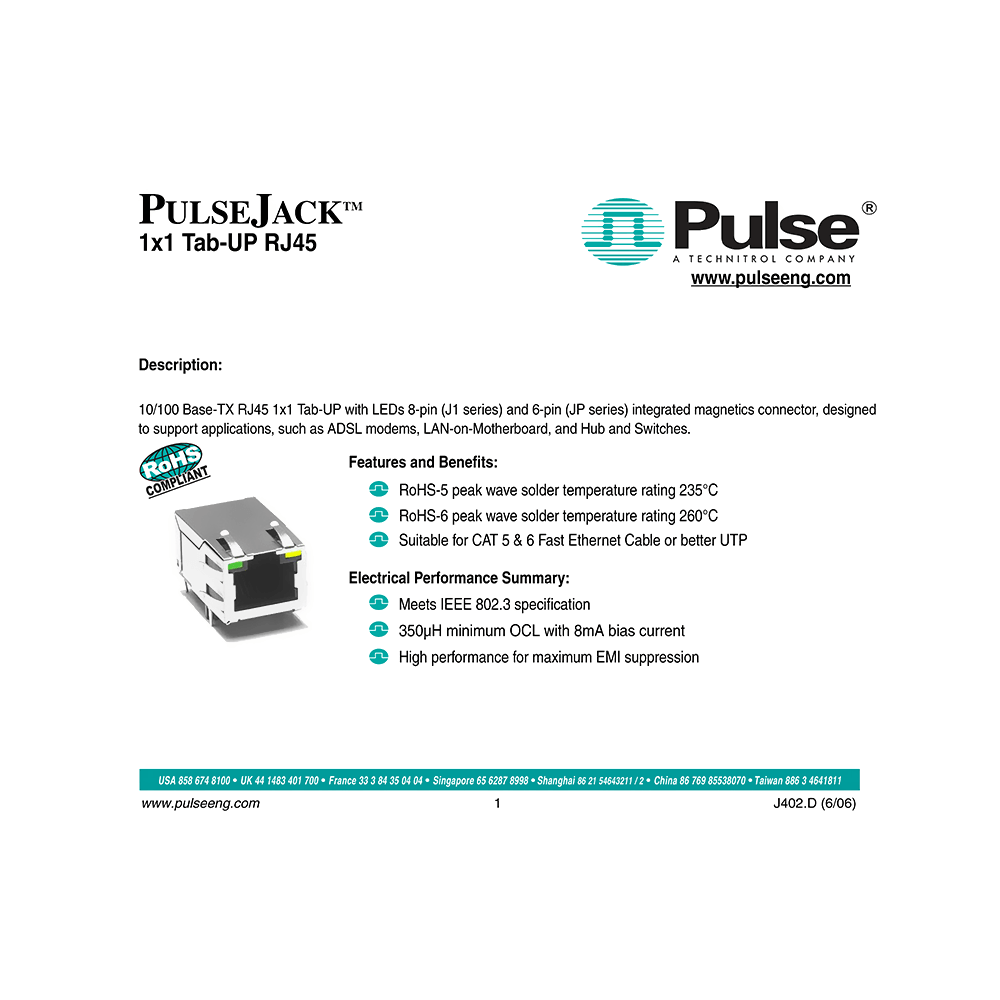

J1026F01NL Pulse 10/100 Base-TX RJ45 8-pin Integrated Magnetics Connector Data Sheet
Download Datasheet for Pulse J1026F01NL 10/100 Base-TX RJ45 8-pin Integrated Magnetics Connector [5 pages J402.D (6/06) pdf]
SKU: PULSEJ1026F01NLDS2006 Category: Data Sheets Brand: Pulse Engineering
10/100 Base-TX RJ45 1×1 Tab-UP with LEDs 8-pin integrated magnetics connector, designed to support applications, such as ADSL modems, LAN-on-Motherboard, and Hub and Switches.
FEATURES AND BENEFITS:
– RoHS-5 peak wave solder temperature rating 235 deg C
– RoHS-6 peak wave solder temperature rating 260 deg C
– Suitable for CAT 5 and 6 Fast Ethernet Cable or better UTP
ELECTRICAL PERFORMANCE SUMMARY:
– Meets IEEE 802.3 specification
– 350uH minimum OCL with 8mA bias current
– High performance for maximum EMI suppression
