J00-0051NL Pulse 10 Base-T RJ45 8-pin Integrated Magnetics Connector Data Sheet
Download PDF datasheet for Pulse J00-0051NL StarJack 10 Base-T RJ45 1×1 Tab-DOWN 8-pin Integrated Magnetics Connector (EN) 3 pages J414.C (6/06) zip
This datasheet provides information about the Pulse J00-0051NL RJ45 connector.
Pulse J00-0051NL StarJack 10 Base-T RJ45 1×1 Tab-DOWN 8-pin Integrated Magnetics Connector

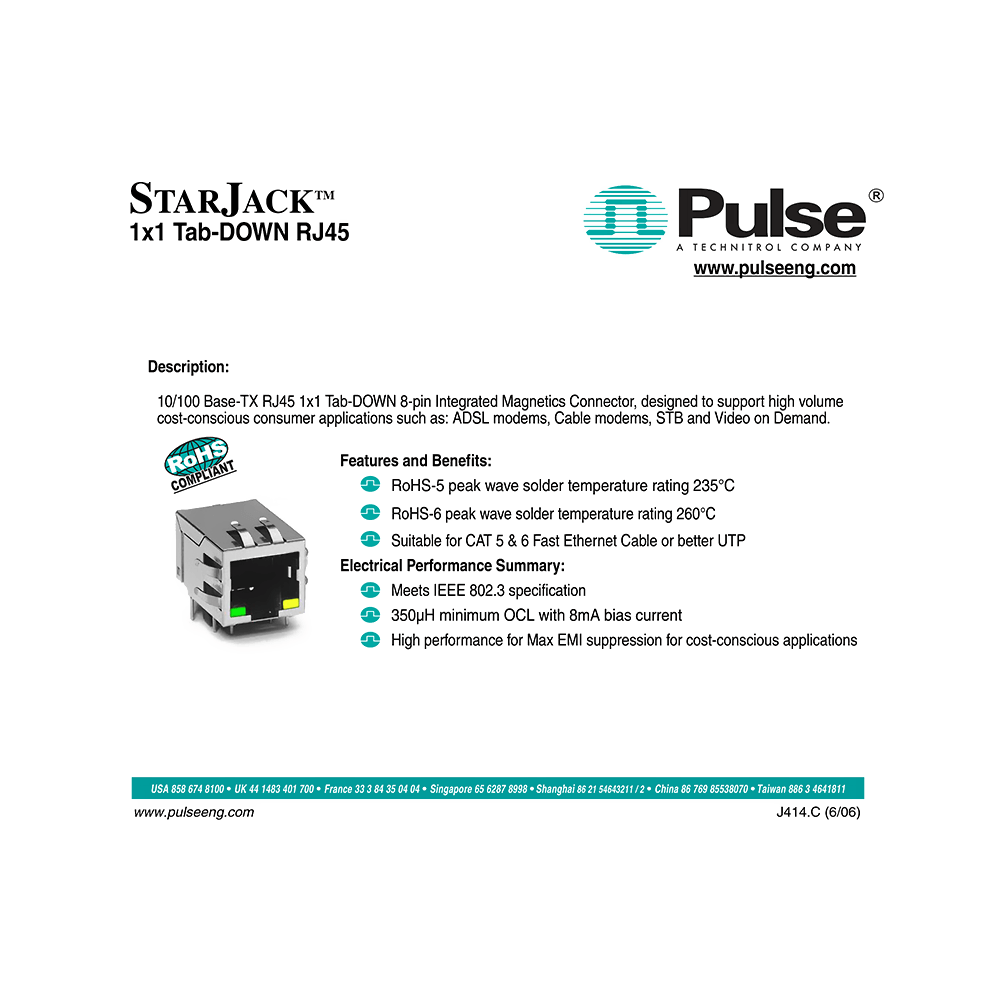

10 Base-T RJ45 1×1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.
(PDF) DATASHEET in English (EN) language.
– Features and Benefits
– Electrical Performance Summary
– Electrical Specifications
– RJ45 Durability Testing Rating
– RJ45 Material Specification
– LED Configuration
– Electrical Schematics
The datasheet includes information about the electrical performance of the connector, such as insertion and return loss, common mode rejection, data rate, EMI, BST, turns ratio, crosstalk and hipot. It also provides details about the mechanicals of the connector, including LED configuration and peak wave solder temperature ratings.
This datasheet provides all the information (according to the table of contents) from Pulse Engineering about the J00-0051NL StarJack 10 Base-T RJ45 Integrated Magnetics Connector. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
