Graco SlimFit3 LX 3-in-1 Car Seat Instruction Manual

Download PDF user manual for Graco SlimFit3 LX 3-in-1 Car Seat (EN|ES) 232 pages NWL0001077519C, NWL0001150089B 2020 zip



This PDF instruction manual is for the Graco SlimFit3 LX 3-in-1 Car Seat.

Graco SlimFit3 LX 3-in-1 Car Seat (5-100 lb)

The Graco(R) SlimFit3(TM) LX 3-in-1 Car Seat is our slimmest design that fits 3 car seats across, saving space in your back seat without compromising on the safety you trust and the features you need. This narrow all-in-one car seat grows with your child from rear-facing harness (5-40 lb) to forward-facing harness (22-65 lb) to highback booster (40-100 lb). We tested our lightweight 3-across car seat in every configuration, to help ensure your growing family can fit in your vehicle, even with children of different ages who ride in different modes, or when paired with select other Graco car seats. Integrated belt lock-off makes for easy vehicle seat belt installation in forward-facing mode, and allows you to position your seats to maximize space with 3 across. Graco’s exclusive push-button InRight(TM) LATCH provides an easy, one-second attachment with an audible click to help ensure secure installation. We made thoughtful design choices to make the SlimFit3 easy to adjust with 3 car seats in the back seat. The No-Rethread Simply Safe Adjust(TM) Harness System allows you to adjust the height of the headrest and harness to 10 positions with just one motion for just the right fit. Easily adjust the 4-position recline for a better installation and a comfortable ride. The Rapid Remove cover comes off in 60 seconds, without uninstalling the seat or removing the harness, and is machine washable. Plus, the SlimFit3(TM) is slim enough to fit 3 across, but spacious enough to keep your growing child comfy. Breathable mesh AirFlow channels provide improved ventilation to keep your child cool and comfortable. Two cup holders are designed to work with the three-across configuration to keep drinks and snacks close at hand. Fuss-free harness storage pockets conveniently hold the harness out of the way while your child gets in and out. Removable, plush head and body inserts help to keep your infant feeling cradled and comfortable. The steel-reinforced frame provides strength and durability for years of use, and EPS energy-absorbing foam provides effective impact energy management. This car seat is Graco(R) ProtectPlus Engineered(TM) to help protect in frontal, side, rear, and rollover crashes.

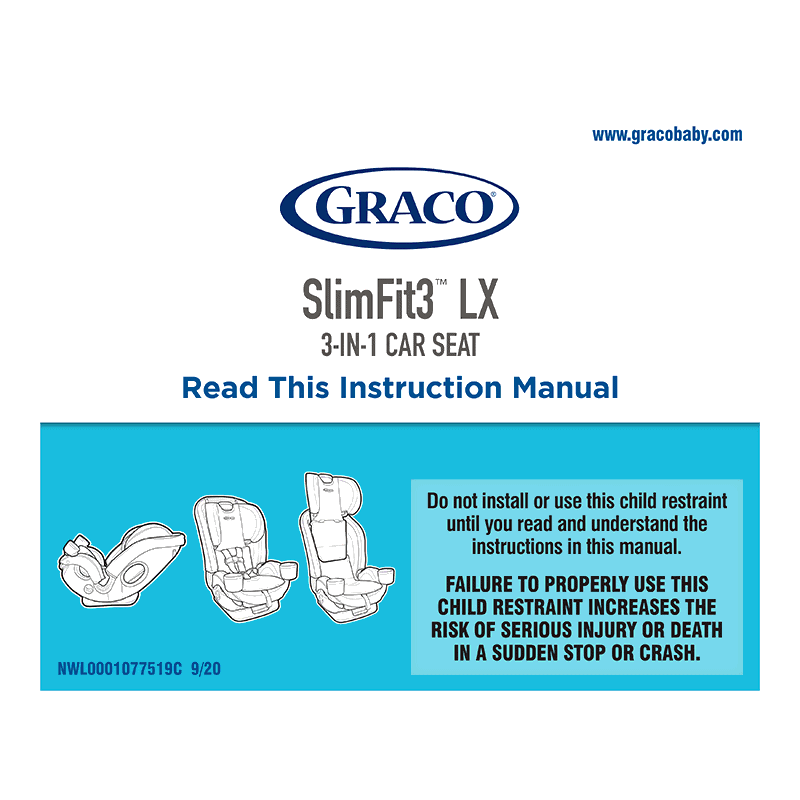

Read This Instruction Manual (NWL0001077519C 9/20)
Lea este manual de instrucciones (NWL0001150089B 9/20)

Do not install or use this child restraint until you read and understand the instructions in this manual.
No instale ni use este sistema de seguridad para niños hasta que haya leído y entendido las instrucciones en este manual.

(PDF) INSTRUCTION MANUAL in English (EN) and Español (ES) languages.


1-A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin: Register This Car Seat, If You Need Help, Certification, Car Seat’s Useful Life, Vehicle Seat Protection, Warm Weather Use
1-E Safety Warnings


3-A Getting Started
3-B Tips for Each Mode of Use
3-C Three-Across Checklist

4-A Rear-Facing Use
4-B Install Rear-Facing with Vehicle Seat Belt
4-C Install Rear-Facing with Lower Anchor Attachment

5-A Forward-Facing Use
5-B Install Forward-Facing with the Vehicle Seat Belt
5-C Install Forward-Facing with LATCH

6-A Securing Child 5-Point Harness

7-A Booster Use
7-B Install Highback Booster
7-C Securing Child Highback Booster



10-A How to Uninstall Lower Anchor Connectors and Tether
10-B Choosing Vehicle Seat Location
10-C Unsafe Vehicle Seat Location
10-D Vehicle Seat Belts

11-A Cleaning Rapid Remove Seat Pad
11-B Cleaning Buckle
11-C Cleaning Harness, Lower Anchor Attachment and Tether

This instruction manual provides all the information (according to the table of contents) from Graco about the SlimFit3 LX 3-in-1 Car Seat, including answers to the questions listed above. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

Download it by clicking the button below
