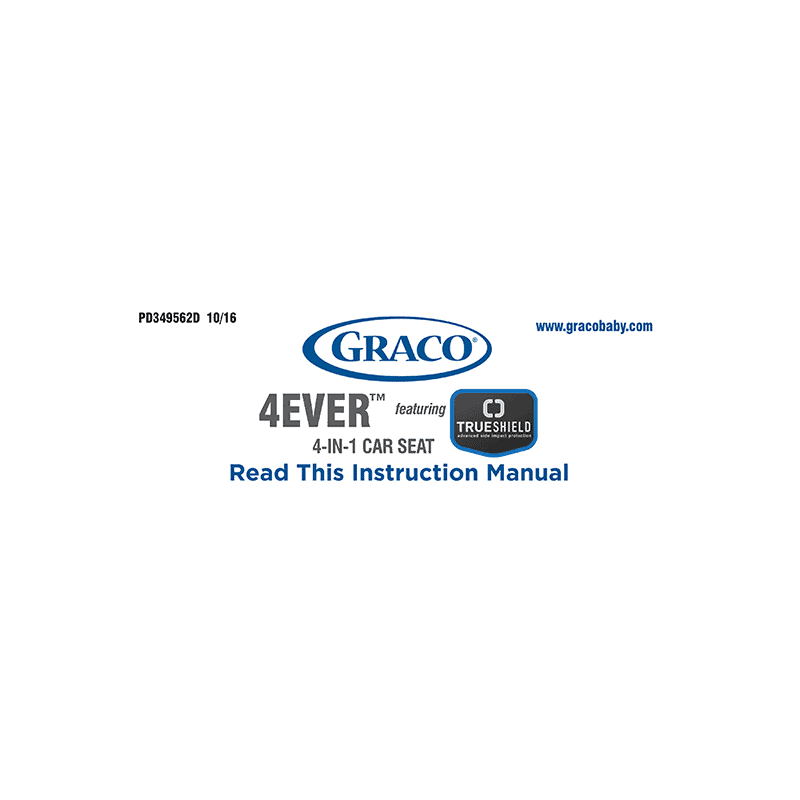

Graco 4Ever 4-in-1 Convertible Car Seat (with TrueShield) Instruction Manual

Download PDF user manual for Graco Children’s Products 4Ever 4-in-1 Convertible Car Seat (with TrueShield) (EN) 120 pages PD349562D 10/16 zip



This PDF instruction manual is for the Graco 4Ever 4-in-1 Convertible car seat with TrueShield Technology.

Graco 4Ever 4-in-1 Convertible Toddler Car Seat featuring TrueShield Technology

Model#: 1992117

The Graco 4Ever 4-in-1 Car Seat featuring TrueShield Technology gives you 10 years with one car seat. It’s comfortable for your child and convenient for you as it transitions from rear-facing infant car seat (4-40 lb) to forward-facing 5-point harness seat (22-65 lb) to highback belt-positioning booster seat (40-100 lb) to backless belt-positioning booster (40-120 lb). With advanced side impact protection, TrueShield Technology protects your child from head to hips in the event of a side impact. For a proper fit, the Simply Safe Adjust Harness System and 10-position headrest lets you adjust the headrest and harness together, without rethreading. The 6-position recline keeps your child comfortable, while the InRight LATCH system and easy to read level indicator makes rear-facing installation easy. It’s the only seat that truly goes from baby to booster!
– Washable seat cover is easy to remove without removing the harness
– The Graco exclusive InRight LATCH attachment provides an easy, one-second attachment with an audio click cue to help ensure secure installation
– Steel-reinforced frame provides strength and durability for years of smart utility
– Integrated harness storage compartment holds the harness straps that are not in use while in the belt positioning booster mode for a simple transition back to harness mode
– 2 integrated cupholders keeps your child’s drinks or snacks close at hand
– Plush inserts keep your child comfortable on your many journeys together
– Easy-to-read level indicator helps eliminate guesswork from the installation process, so you can feel confident it’s installed correctly rear-facing
– AAP & NHTSA recommend that children ride rear-facing(RF) until 2 or until they reach maximum(max) RF weight/height(w/h) rating for car seat, & when forward-facing(FF), should use the built-in harness system for as long as possible until they reach the max FF w/h for car seat. After reaching the max FF w/h, also recommend that children 4’9″ tall or under should ride in a belt-positioning booster.
– Side Impact Tested*; New Car Assessment Program (NCAP) – peak crash force approximately 2X car seat standard; Extreme Car Interior Temperatures

– Rear-Facing Harness: 4-40 lb, head must be at least 1″ below handle; Forward-Facing Harness: 22-65 lb, up to 49″; Highback Booster: 40-100 lb, 43-57″, at least 4 years old; Backless Booster: 40-120 lb, 43-57″, at least 4 years old
– STOP using this child restraint and throw it away 10 years after the date of manufacture.
– Children are safer riding rear-facing and should ride rear-facing as long as possible, until they reach the maximum rear-facing height or weight rating for their car seat. Then children should ride forward-facing, using the built-in harness system for as long as possible until they reach the maximum forward-facing weight or height for their car seat. At that point, children should ride in a belt-positioning booster seat. A booster is no longer needed once the vehicle seat belt fits properly, typically when they reach 4 feet 9 inches tall and are between ages 8-12. Be sure to check your local and state laws, as well as AAP and NHTSA recommendations, for car seat usage.*
*Graco Supports the American Academy of Pediatrics and National Highway Traffic Safety Administration’s Car Seat Guidelines. Visit our safety page for information on car seat usage recommendations.

– Cleaning Seat Pad: Machine wash pad & canopy in cold water with gentle soap on delicate cycle & drip dry. Do not use bleach
– Cleaning Buckle: Place in a cup of warm water and gently agitate the buckle. Press red button several times while in the water. Do not submerge the buckle strap. Do not use soap, detergents or lubricants
– Cleaning Harness: Surface wash only with mild soap & damp cloth or wipes. Do not immerse harness straps or latch strap in water. For full instructions see here
– Cleaning Hardgoods: Metal and plastic parts may be cleaned with mild soap & cool water For full cleaning instructions, please refer to your user manual or contact Customer Service

Read this instruction manual.
Do not install or use this child restraint until you read and understand the instructions in this manual.



1-A Quick Guide to Your Manual
– What Seating Location Should I Use?
– The best seating location for this car seat
– Which Installation Method Should I Use?
– What is LATCH?
– When Installing Rear-Facing or Forward-Facing
– When Installing As a Booster
– Does Your Car Seat Fit Your Child Correctly?
– Did You Do Everything Correctly?
1-B Welcome to the Graco Family
Even if this car seat seems easy to figure out on your own, you must follow the detailed instructions in this instruction manual to ensure the – below are performed correctly.
1-C Right Mode of Use
1-D Before You Begin: Register This Car Seat. If You Need Help. Certification. Car Seat’s Useful Life. Vehicle Seat Protection. Warm Weather Use.
1-E Safety Warnings

2-A Car Seat Features

3-A Rear-Facing Use
3-B Install Rear-Facing with LATCH Straps: 11 steps. Is Everything Correct?
3-C Install Rear-Facing with Vehicle Seat Belt: 9 steps. Is Everything Correct?

4-A Forward-Facing Use
4-B Install Forward-Facing with LATCH Straps: 11 steps. Is Everything Correct?
4-C Install Forward-Facing with the Vehicle Seat Belt: 12 steps. Is Everything Correct?

5-A Booster Use
5-B Install Backed Booster: 10 steps.
5-C Install Backless Booster: 11 steps.

6-A Securing Child 5-Point Harness: 15 steps.
6-B Securing Child Backed Booster: 3 steps. Is Everything Correct?
6-C Securing Child Backless Booster: 3 steps. Is Everything Correct?
– Using Belt Positioning Clip



9-A How to Remove LATCH and Top Tether
9-B Choosing Vehicle Seat Location
9-C Unsafe Vehicle Seat Location
9-D Vehicle Seat Belts
– Vehicle Seat Belt Terms
– Identify Your Seat Belt Type
– Lap/Shoulder Belt Installation – Rear-Facing/Forward Facing Modes
– How to Lock Your Lap and Shoulder Vehicle Seat Belt
– Sliding Latch Plate and Switchable Retractor
– Locking Latchplate and ELR Retractor
– Sliding Latch Plate and ALR Retractor
– Lap Belt Installation – DO NOT use in Booster Mode

10-A Cleaning Seat Pad: Headrest Pad, Seat Pad.
10-B Cleaning Buckle Strap
10-C Cleaning Harness and LATCH Straps

How to purchase parts or accessories
