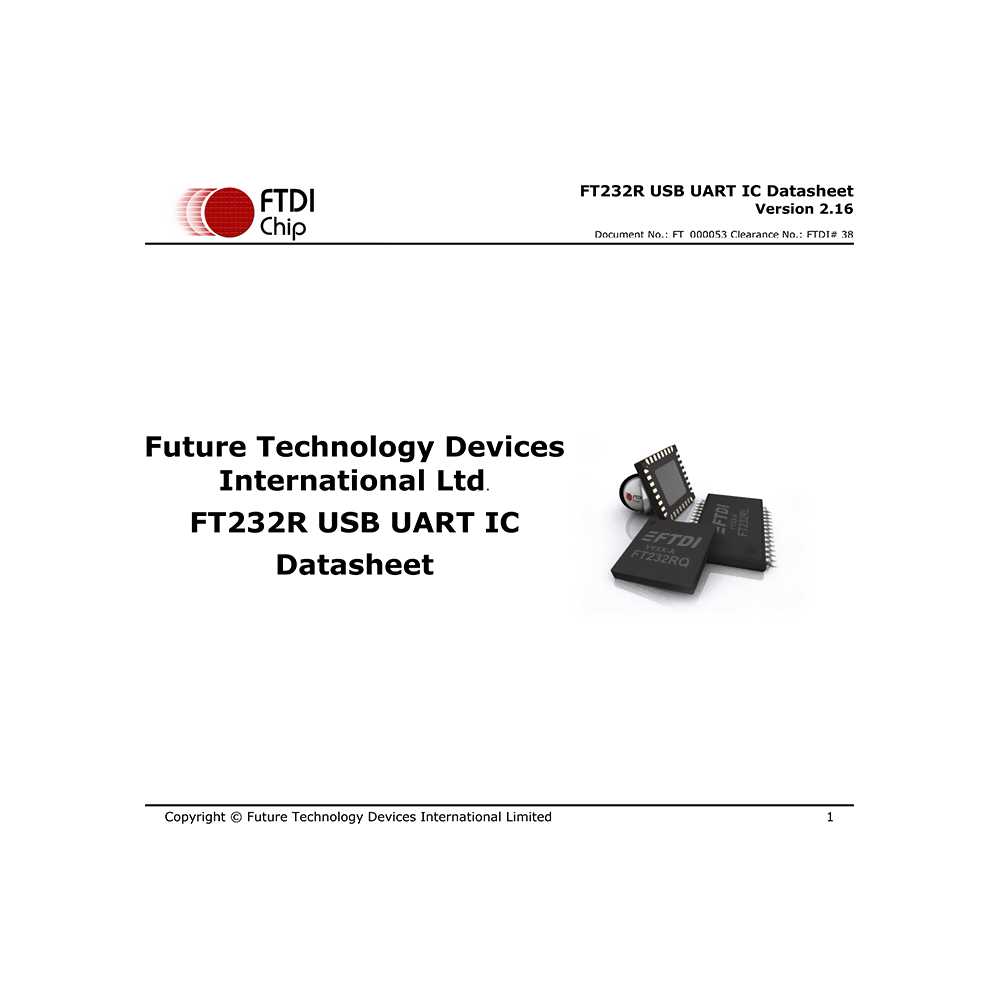

FT232R FTDI USB UART IC Datasheet

Download PDF datasheet for Future Technology Devices International FT232R USB to serial UART interface IC (EN) 40 pages Version 2.16 2020 zip

SKU: FTDIFT232RDS2020 Category: Brand:

Description

This PDF datasheet is for the FTDI FT232R USB to serial UART interface IC.

FTDI FT232R USB to serial UART interface IC

FT232RQ, FT232RL

The FT232R is a USB to serial UART interface with multiple features.

(PDF) DATASHEET (ENGLISH)

CONTENTS

– Typical Applications, Driver Support, Part Numbers, USB Compliant
– FT232R Block Diagram
– Device Pin Out and Signal Description: 28-LD SSOP Package, SSOP Package Pin Out Description, QFN-32 Package, QFN-32 Package Signal Description, CBUS Signal Options
– Function Description: Key Features, Functional Block Descriptions
– Devices Characteristics and Ratings: Absolute Maximum Ratings, DC Characteristics, EEPROM Reliability Characteristics, Internal Clock Characteristics, Thermal Characteristics
– USB Power Configurations: USB Bus Powered Configuration, Self Powered Configuration, USB Bus Powered with Power Switching Configuration, USB Bus Powered with Selectable External Logic Supply
– Application Examples: USB to RS232 Converter, USB to RS485 Converter, USB to RS422 Converter, USB to MCU UART Interface, LED Interface, Using the External Oscillator
– Internal EEPROM Configuration
– Package Parameters: SSOP-28 Package Dimensions, QFN-32 Package Dimensions, Solder Reflow Profile
– Alternative Parts
– Contact Information
– Appendix A – References
– Document References
– Acronyms and Abbreviations
– Appendix B – List of Figures and Tables
– List of Figures
– List of Tables
– Appendix C – Revision History
