DeWALT DXAE20VBBK Battery Booster Instruction Manual

Description

This PDF instruction manual is for the DeWALT DXAE20VBBK battery booster combo pack.

About the Item

DeWALT DXAE20VBBK Battery Booster Combo Pack compatible with 20V XR 5 AH Lithium-Ion Battery, includes 5AH Battery and Charger

The DeWALT DXAE20VBBK Cordless Vehicle Battery Charger features a 20A cordless vehicle battery charging function, two USB ports and a dual LED light.

FEATURES
– Powered by a DeWalt 20V XR 5 AH DeWalt Lithium Ion Battery
– Includes Battery Booster, 20V XR 5 AH DeWalt Battery + DeWalt DCB115 Battery Charger
– Compatible with WET, GEL and AGM 12V lead-acid batteries
– Simply plug a USB-powered device into one of the USB power ports and press the USB Button on the control panel to charge
– Flashing red light advises of a fault condition regarding reverse connection
– Properly connect the clamps to your vehicle’s batter press the BOOST ON/OFF button and once the LED Status Indicator is green-you are ready to boost your battery
– Easily portable, this Battery Booster is ready to go where you go in a small, compact size
– Bright LED work light helps with roadside repairs after dark

Read all instructions.
Heed all warnings.
Follow all instructions.
Save these instructions for future use.

Document(s) available

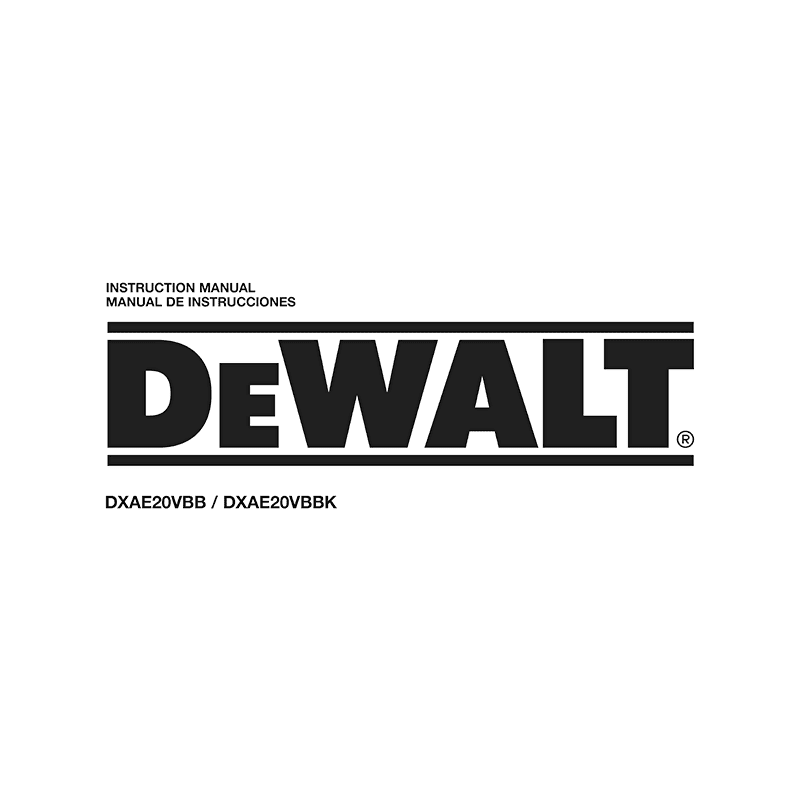

(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES

Available languages

ENGLISH (EN) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS
– Specific Safety Instructions for DeWALT 20V Lithium-Ion Battery Packs
– Specific Safety Instructions for Vehicle Battery Chargers
– Specific Safety Instructions for the USB Ports
– The RBRC Seal
– Important Safety Instructions for All DeWALT 20V Battery Pack Chargers
– Minimum Gage For Cord Sets
– Personal Precautions

PRODUCT DESCRIPTION
– Components
– Back Panel Components
– Back Panel Components
– Power Supply
– Chargers. Charging procedure.

OPERATING INSTRUCTIONS
Automotive Charging Using the Included Battery Clamps
– Preparing to charge
– Charger location
– Connection precautions
– Follow these steps when the battery is installed in a vehicle
– Follow these steps when the battery has been removed from a vehicle
– Function of the charge status/fault indicator LED during charging/boosting

OPERATING THE UNIT’S DUAL USB PORTS

OPERATING THE UNIT’S LED LIGHTS

MAINTENANCE INSTRUCTIONS

TROUBLESHOOTING
– The unit will not charge the vehicle battery
– The LED Lights will not operate
– USB Port will not power appliance

ACCESSORIES

SERVICE INFORMATION

WARRANTY

SPECIFICATIONS
– Input: 20V DC
– Output: 14.5V DC, 20A max.
– USB Ports: 5V DC, 2.1A max.
– LED Lights: (2x) 2 white LEDs

COMPATIBLE DeWALT 20V BATTERY PACKS
