DeWALT DXAE20VBB Battery Booster Instruction Manual
Download PDF user manual for Baccus Global / DeWALT Industrial Tool Battery Booster Model: DXAE20VBB compatible with 20V XR 5 AH Lithium-Ion Battery (EN|ES) 30 pages RD103122 2022 zip
Description
This PDF instruction manual is for the DeWALT DXAE20VBB battery booster.
About the Item
DeWALT DXAE20VBB Battery Booster compatible with 20V XR 5 AH Lithium-Ion Battery
The DeWALT DXAE20VBB Cordless Vehicle Battery Charger features a 20A cordless vehicle battery charging function, two USB ports and a dual LED light.
FEATURES
– Powered by a DeWalt 20V XR 5 AH DeWalt Lithium Ion Battery
– DeWalt 20V XR 5 AH battery not included
– Compatible with WET, GEL and AGM 12V lead-acid batteries
– Simply plug a USB-powered device into one of the USB power ports and press the USB Button on the control panel to charge
– Flashing red light advises of a fault condition regarding reverse connection
– Properly connect the clamps to your vehicle’s batter press the BOOST ON/OFF button and once the LED Status Indicator is green-you are ready to boost your battery
– Easily portable, this Battery Booster is ready to go where you go in a small, compact size
– Bright LED work light helps with roadside repairs after dark
Read all instructions.
Heed all warnings.
Follow all instructions.
Save these instructions for future use.
Document(s) available

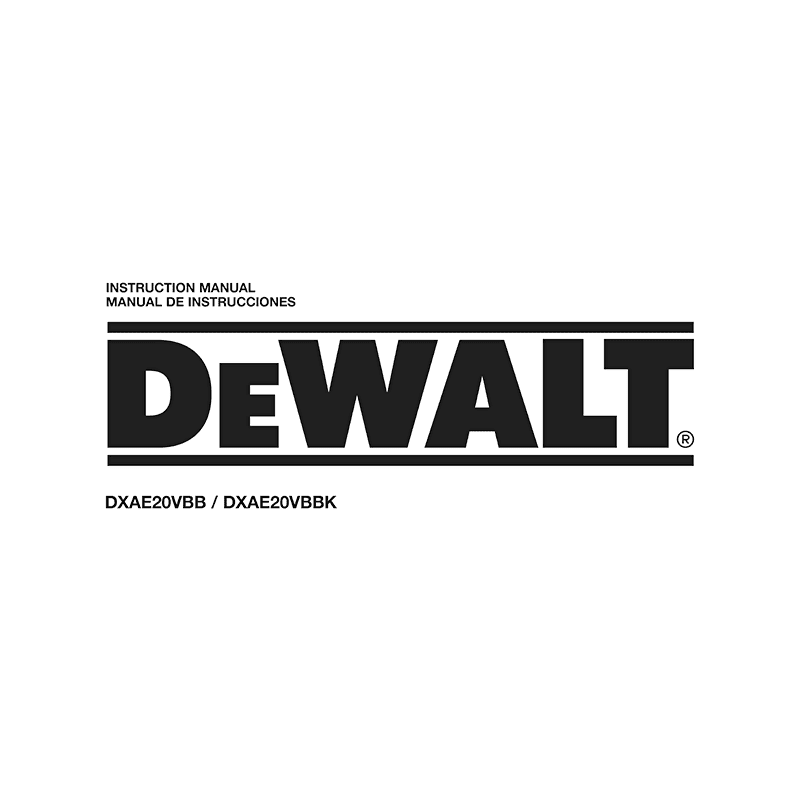

(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
Available languages
ENGLISH (EN) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
– Specific Safety Instructions for DeWALT 20V Lithium-Ion Battery Packs
– Specific Safety Instructions for Vehicle Battery Chargers
– Specific Safety Instructions for the USB Ports
– The RBRC Seal
– Important Safety Instructions for All DeWALT 20V Battery Pack Chargers
– Minimum Gage For Cord Sets
– Personal Precautions
PRODUCT DESCRIPTION
– Components
– Back Panel Components
– Back Panel Components
– Power Supply
– Chargers. Charging procedure.
OPERATING INSTRUCTIONS
Automotive Charging Using the Included Battery Clamps
– Preparing to charge
– Charger location
– Connection precautions
– Follow these steps when the battery is installed in a vehicle
– Follow these steps when the battery has been removed from a vehicle
– Function of the charge status/fault indicator LED during charging/boosting
OPERATING THE UNIT’S DUAL USB PORTS
OPERATING THE UNIT’S LED LIGHTS
MAINTENANCE INSTRUCTIONS
TROUBLESHOOTING
– The unit will not charge the vehicle battery
– The LED Lights will not operate
– USB Port will not power appliance
ACCESSORIES
SERVICE INFORMATION
WARRANTY
SPECIFICATIONS
– Input: 20V DC
– Output: 14.5V DC, 20A max.
– USB Ports: 5V DC, 2.1A max.
– LED Lights: (2x) 2 white LEDs
COMPATIBLE DeWALT 20V BATTERY PACKS
