Delta THZ16K71 Ethernet Transformer Data Sheet

Download PDF data sheet for Delta Electronics THZ16K71 Ethernet Transformer for data communication (EN) 1 page zip

SKU: DELTATHZ16K71DS Category: Brand:

Description

This PDF data sheet is for the Delta Electronics THZ16K71 Ethernet Transformer for data communication.

Delta Electronics THZ16K71 Ethernet Transformer

Delta Electronics networking components: Ethernet Transformer For Data Communication Application.

The Delta Electronics ethernet transformer is a high-performance transformer that is designed for use in Ethernet networks, including:
– Industrial Ethernet networks
– Commercial Ethernet networks
– Home Ethernet networks

(PDF) DATA SHEET in English (EN) language.

CONTENTS:

ELECTRICAL CHARACTERISTICS
– Open Circuit Inductance (OCL) (uH)
– LK (Max) (uH)
– CP (Max) (pF)
– DC resistance (Ohm)
– Turn ratio (Pri:Sec)
– Hi-Pot (60Sec) Vrms

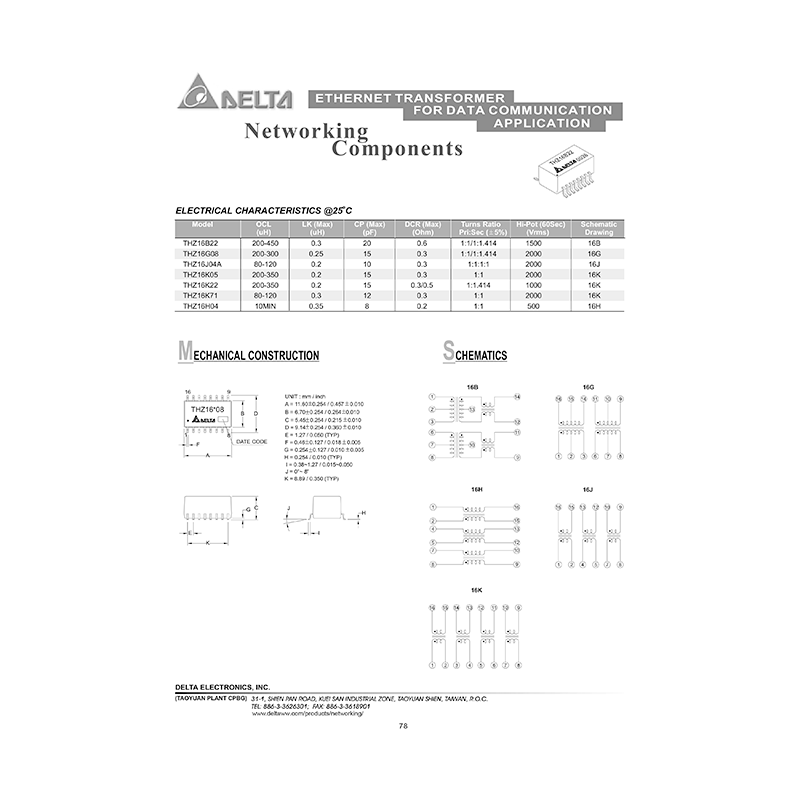

– Schematic Drawing

MECHANICAL CONSTRUCTION
– Dimensions (mm / inch)

THZ16K71 PINOUT

SCHEMATICS

This data sheet provides all the information (according to the table of contents) from Delta Electronics about the THZ16K71 Ethernet Transformer for data communication. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
