D1D12 Crydom 100Vdc 12A Output Relay Data Sheet

Download Datasheet for Crydom D1D12 100Vdc 12A Output Relay (SSR) [3 pages REV.011602 2001 pdf/zip]

SKU: D1D12CRYDOMDS2002 Category: Brand:

Description

* MOSFET Output
* Low On-State Resistance
* Paralleling Capability for Higher Currents
* Panel Mount

DC output relays feature MOSFET technology for low on-state resistance, assuring easy paralleling and switching capabilities to 40 amps at 100 Vdc. Lower current models are also available to 500 Vdc. All models come in Crydom’s standard panel-mount package. Manufactured in Crydom’s ISO 9001 Certified facility for optimum product performance and reliability.

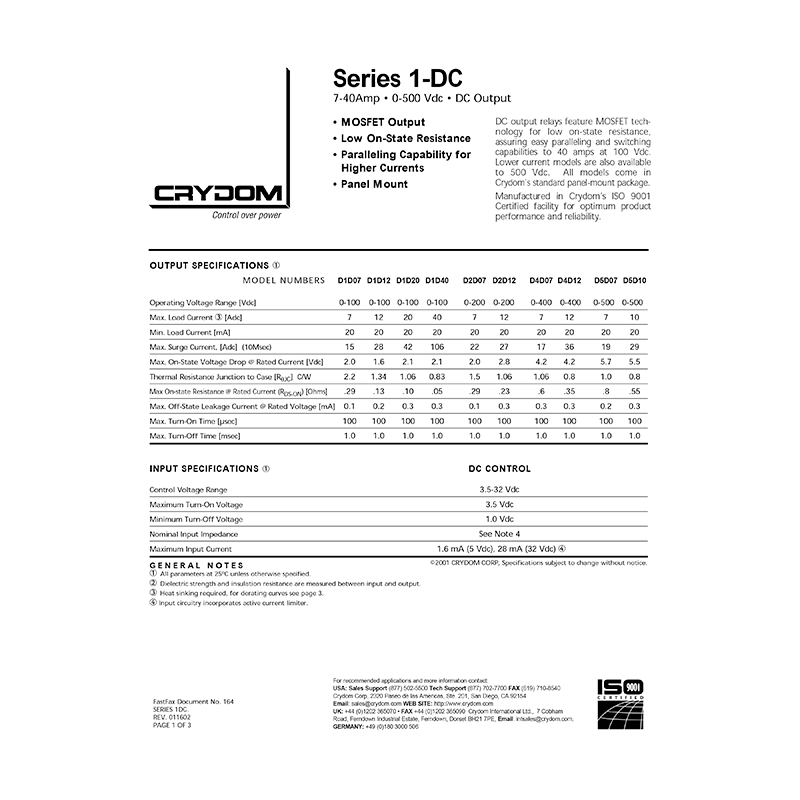

DATASHEET CONTAINS:

OUTPUT SPECIFICATIONS

INPUT SPECIFICATIONS

D1D12 PINOUT

DC CONTROL

GENERAL NOTES

GENERAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS

TRANSIENT PROTECTION

Crydom Heat Sinks offer excellent thermal management and are perfectly matched to the load current ratings of Crydom panel mount relays. Request Crydom’s Heat Sink specification sheet for all the details.

Fig. MAXIMUM SURGE vs. DURATION
Fig. CURRENT DERATING CURVES
