Center CB Wired 7-day Programmable Room Thermostat 340023 User Guide

Download PDF User and Installation Guide for Wolseley – Center CB 340023 (EHE0200123) Wired 7-day Programmable Room Thermostat (EN) R32345747-001 B, R32345746-001 B, R32349361-001 A 2022 zip

SKU: CENTERCB340023EHE0200123UM Category: Brand:

Description

This PDF user guide is for the Center CB Wired 7-day Programmable Room Thermostat 340023 (EHE0200123).

Center CB Wired 7-day Programmable Room Thermostat Product code: 340023 | EHE0200123

This Center CB wired 7-day programmable room thermostat offers reliable technology designed for efficient heating. While adaptive control technology maintains home temperature by matching the heating system output to demand, optimum start/stop learns the system’s warm-up/cool-down response times, calculating the best possible time to switch on and off. These features not only improve heating comfort in the home but improve energy use for potential cost savings.

(PDF) USER GUIDE in English (EN) language.

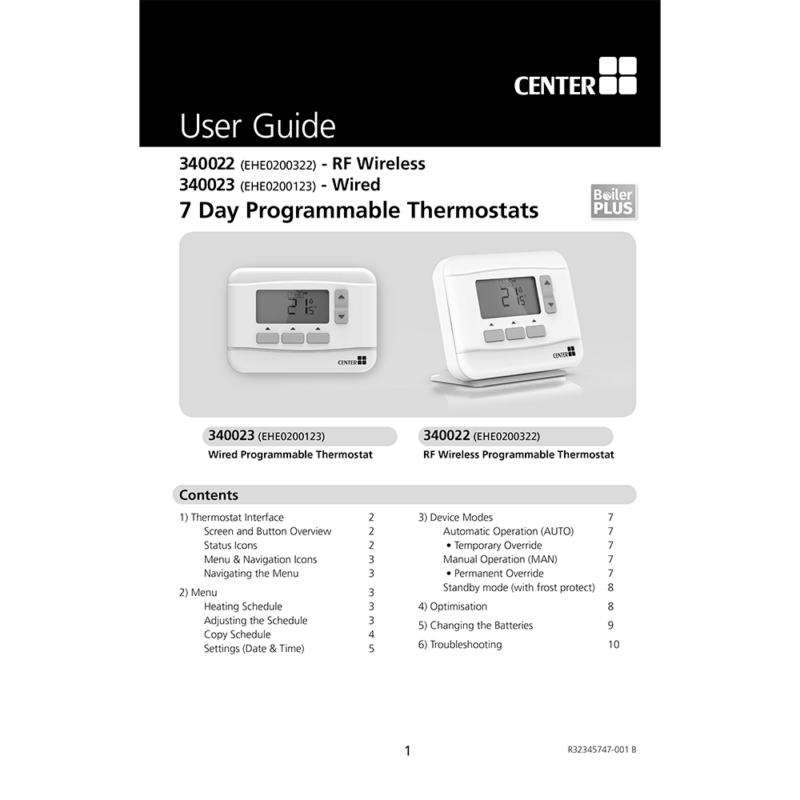

CONTENTS:

1) Thermostat Interface: Screen and Button Overview. Status Icons. Menu & Navigation Icons. Navigating the Menu.
2) Menu: Heating Schedule. Adjusting the Schedule. Copy Schedule. Settings (Date & Time).
3) Device Modes: Automatic Operation (AUTO). Temporary Override. Manual Operation (MAN). Permanent Override. Standby mode (with frost protect).
4) Optimisation
5) Changing the Batteries
6) Troubleshooting

(PDF) INSTALLATION GUIDE

CONTENTS:
Please read these instructions fully prior to use as they contain information that will help get the best from your wireless thermostat, ensuring it is operating correctly and safely.

– Warnings
– What’s in the box
– Installing the Receiver Box
– Wiring: On/off boiler (230V), Combi boiler, 2-Port Zone Valve.
– Installing the Thermostat
– Parameters: No / Description / Settings
– Table Stand and Wall Mount
– Binding / Rebinding

(PDF) QUICK START GUIDE

(PDF) DATA SHEET

This user guide provides all the information (according to the table of contents) from Center CB / Wolseley about the 340023 (EHE0200123) Wired 7-day Programmable Room Thermostat. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

Download it by clicking the button below
