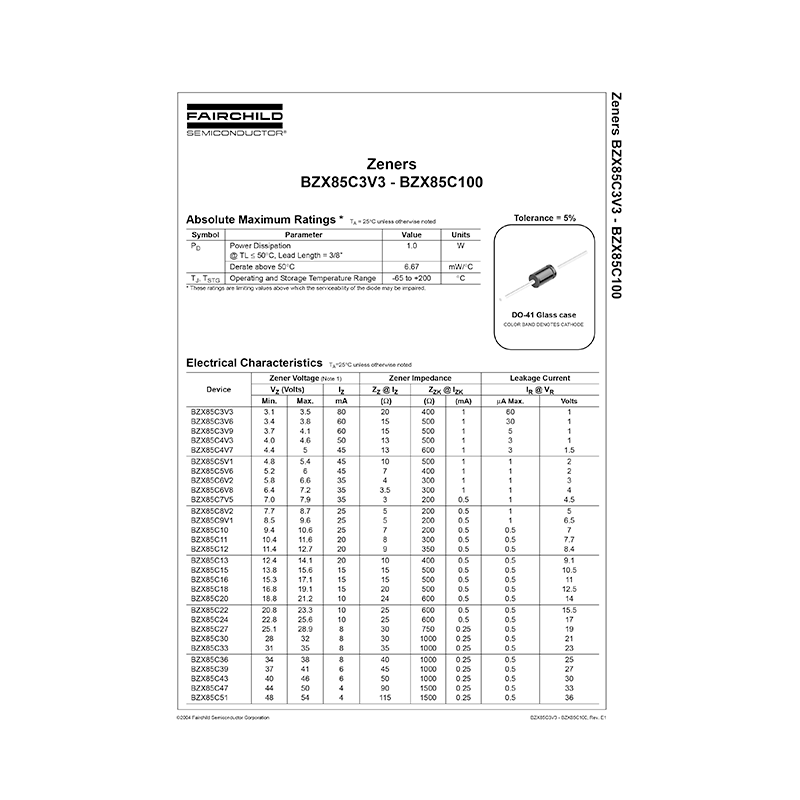

BZX85C62 Fairchild 62V Zener Diode Data Sheet
Download PDF datasheet for Fairchild Semiconductor BZX85C62 62V DO-41 5% Zener Diode (EN) 5 pages Rev.E1 2004 zip
Description
This PDF data sheet is for the Fairchild BZX85C62 Zener Diode.
Fairchild Semiconductor BZX85C62 62-volt DO-41 Glass case 5% Zener Diode
A zener diode is a special type of diode designed to reliably allow current to flow “backwards” (inverted polarity) when a certain set reverse voltage, known as the Zener voltage, is reached.
(PDF) DATASHEET in English (EN) language.
CONTENTS:
ABSOLUTE MAXIMUM RATINGS (Power Dissipation, Operating and Storage Temperature Range)
PINOUT
Tolerance = 5%
DO-41 GLASS CASE, COLOR BAND DENOTES CATHODE
ELECTRICAL CHARACTERISTICS
– Zener Voltage (Min./Max.)
– Zener Impedance (Ohms)
– Leakage Current
TOP MARK INFORMATION. General Requirements.
This datasheet provides all the information (according to the table of contents) from Fairchild Semiconductor about the BZX85C62 Zener Diode. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
Download it by clicking the button below
