BR66 Rectron 600V 6A Bridge Rectifier Data Sheet

Download Datasheet for Rectron Semiconductor BR66 600V 6A Single-Phase Silicon Bridge Rectifier [2 pages 2001 pdf/zip]

SKU: BR66RECTRONSEMICONDUCTORDS2001 Category: Brand:

Description

FEATURES
* Surge overload rating: 125 amperes peak
* Low forward voltage drop
* Small size: simple installation
* Mounting position: Any
* Mounting: Hole thru for # 6 screw

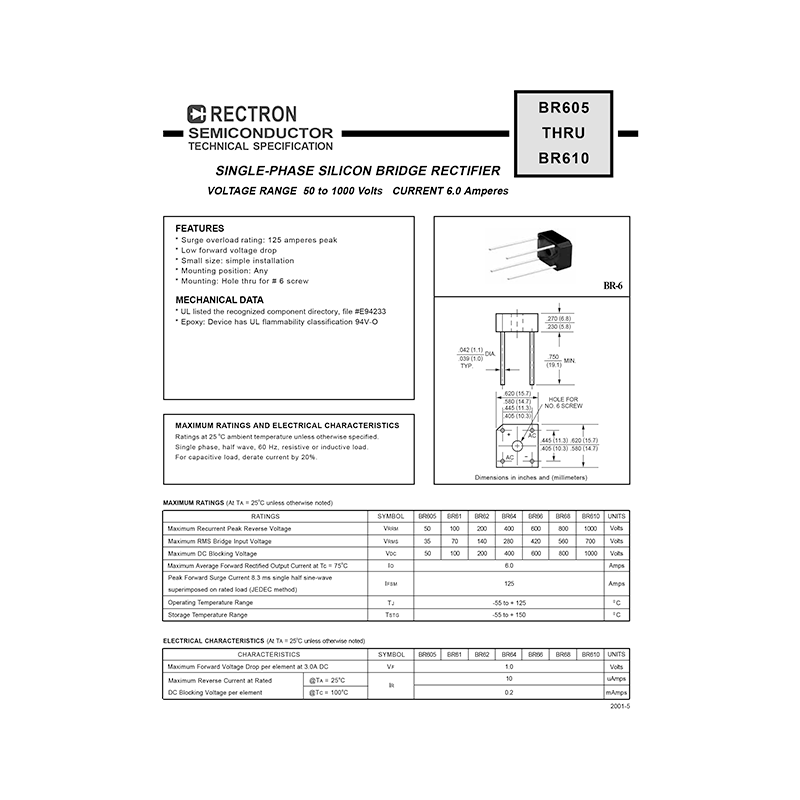

DATASHEET CONTAINS:

MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O

BR66 PINOUT

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 deg C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

RATING AND CHARACTERISTIC CURVES
Fig.1 – Maximum Non-Repetitive Forward Surge Current
Fig.2 – Typical Forward Current Derating Curve
Fig.3 – Typical Instantaneous Forward Characteristics
Fig.4 – Typical Reverse Characteristics
