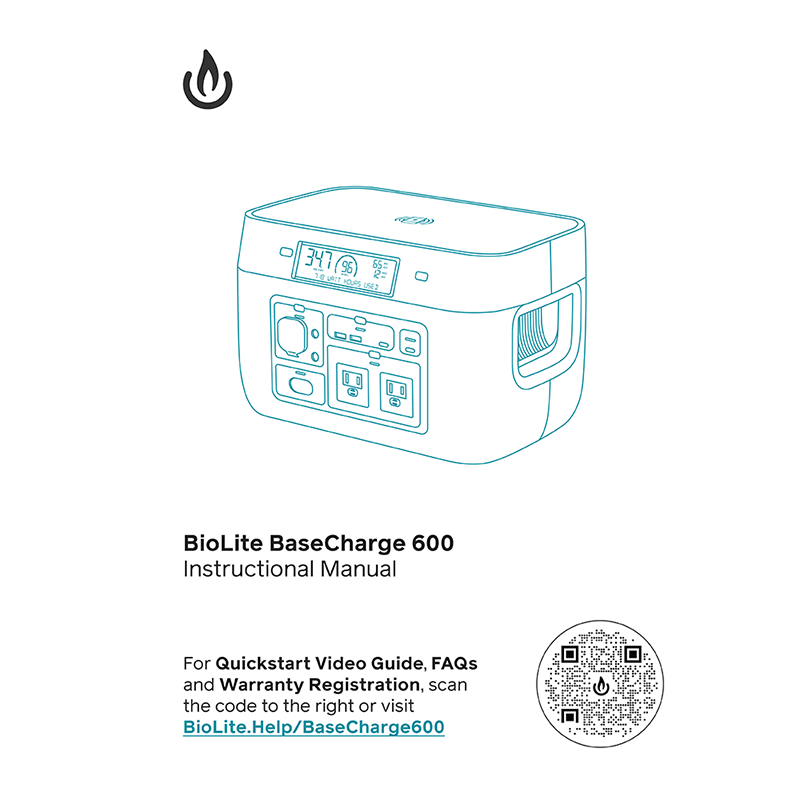

BioLite BaseCharge 600 Power Station Instructional Manual

Download PDF user manual for BioLite BaseCharge 600 Rechargeable Power Station 600W (1000W Surge) 622Wh Li-Ion (EN|FR|ES|DE|SV|NO|FI|ZH|JA|KO|IT|NL) 36 pages BGA0101.032022.REVA 2022 zip

SKU: BIOLITEBASECHARGE600UM Category: Brand:

Description

This PDF instruction manual is for the BioLite BaseCharge 600 Rechargeable Power Station.

BioLite BaseCharge 600 Rechargeable Power Station | 600W (1000W Surge) 622Wh Li-Ion (NMC)

Access home-grade power in off-grid environments that can be recharged from the wall, car, or through solar. The Easy Read Smart LCD Dashboard provides real-time feedback on your system. The internal 12 Checkpoint Safety System constantly monitors the unit so you can share power to your network of devices with confidence. Perfect for personal electronics and family-scale needs, power laptops, phones, lights, routers, and more.
The BaseCharge 600 power station is a li-ion (NMC) battery storage device. The “600” relates to the total watt-hour capacity of the power station, which is 622 watt-hours.
For power output BaseCharge 600 includes a 110V AC pure sine wave inverter for sensitive devices, as well as a number of DC ports including a regulated 12V cigarette lighter, USB-A and USB-C ports, as well as wireless charging on the top deck of the unit. These ports can be used to power most indoor 110V appliances and small electrical devices. For charging inputs they include the HPP 110V AC power supply unit and solar input capabilities.

Read the Instruction Manual.

(PDF) INSTRUCTIONAL MANUAL in English (EN), French (FR), Spanish (ES), German (DE), Swedish (SV), Norwegian (NO), Finnish (FI), Chinese (ZH), Japanese (JA), Korean (KO), Italian (IT), and Dutch (NL) languages.

CONTENTS:

PRODUCT OVERVIEW
– Anatomy
– Tech Specs

USING YOUR BASECHARGE
– Port Overview
– Port Activation

POWERING A DEVICE
1. Plug in device to the corresponding port.
2. Press port activation button. The Port Indicator Light will turn to green indicating “ON”.
3. The Easy-Read LCD Display will indicate the output wattage, and runtime until the BaseCharge is empty.
4. IMPORTANT: Press Port Activation Button to turn off port when not in use. This will help conserve power.

PORT INDICATOR LIGHTS BEHAVIOR
(No Light) – Port Is OFF
(Solid Green) – Port Is ON OUTPUT
(Pulsing Green) – Port Is ON INPUT
(Red) ERROR – See Message Center for details
(Flashing Green) – Low Power Mode Battery is less than 3%. Connect to a power source.

– Wireless Charging
– Easy-Read LCD Display

– Message Center Error Codes

HOT TEMPERATURE GAUGE – BaseCharge is getting hot. Turn off ports by pressing the button above each active port.
COLD TEMPERATURE GAUGE – BaseCharge is cold. Total capacity will be reduced until the temperature increases. Please bring inside.
RED TRIANGLE – Error. User Interface will notify you of the type of error.

– Resetting BaseCharge: To reset your BaseCharge, hold the DISPLAY button for 10 seconds.

CHARGING THE BASECHARGE
– Charge Up Overview

There are three (3) ways to charge the BaseCharge 600:
1. From a wall outlet
2. From USB-C
3. From USB-C + wall outlet

RECHARGING FROM EMPTY

– Solar Charging

MAINTENANCE & CARE
– Storage & Operational Temperatures. Long-term storage.
– Safety Warnings

FAQ (Frequently Asked Questions):

Q: Is this unit pure sine wave?
A: Yes. The unit will not disrupt operation of appliances needing a pure sine wave, like a laptop.

Q: Can I use the BaseCharge unit while it is solar charging?
A: Yes.

Q: Can I power an AC unit or heater?
A: BioLite does not recommend that the BaseCharge power AC units or space heaters.

Q: Does BioLite BaseCharge 600 work with non-BioLite solar panels?
A: Yes, the BioLite BaseCharge 600 can work with standard 12 V solar panels. It is not compatible with higher-voltage panels. If your non-BioLite panel utilizes an MC4 cord, note that the BioLite MC4-to-HPP adapter cord will be required for use (sold separately).

Q: Can I jump start a car?
A: No. The BaseCharge is not the appropriate voltage to jump a standard lead acid vehicle battery.

Q: Can BaseCharge be stored outside?
A: No. The unit should be stored inside in a cool, dry location. Do not expose your unit to extreme temperatures or moisture.

Q: Can I chain multiple BaseCharges together?
A: BioLite does not recommend chaining BaseCharge units together.

Q: How can I estimate how long BaseCharge will power a device I want to use?
A: The Easy-Read Smart Dashboard will calculate in real time the remaining hours left in the unit depending on level of charge, number of devices running, and if there is any power in. For more information on how to understand your power estimates, watch our video tutorials at BioLite.Help/BaseCharge600.

Q: How many devices can I charge wirelessly at once?
A: One device at a time can be charged wirelessly. The device must be directly on top of the wireless charging icon to receive a charge.

Q: What does the surge rating mean in the tech specs?
A: Many devices that use a compressor or electric motor need a momentary spike in wattage to initiate the device. It then settles down to a lower, operational wattage. The BaseCharge can accommodate those “start-up” wattages with the surge capacity feature, but cannot sustain that surge wattage for longer periods of time.

This user manual provides all the information (according to the table of contents) from BioLite about the BaseCharge 600 Rechargeable Power Station, including answers to the questions listed above. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
