BC848CW Siemens NPN Transistor Data Sheet

Description

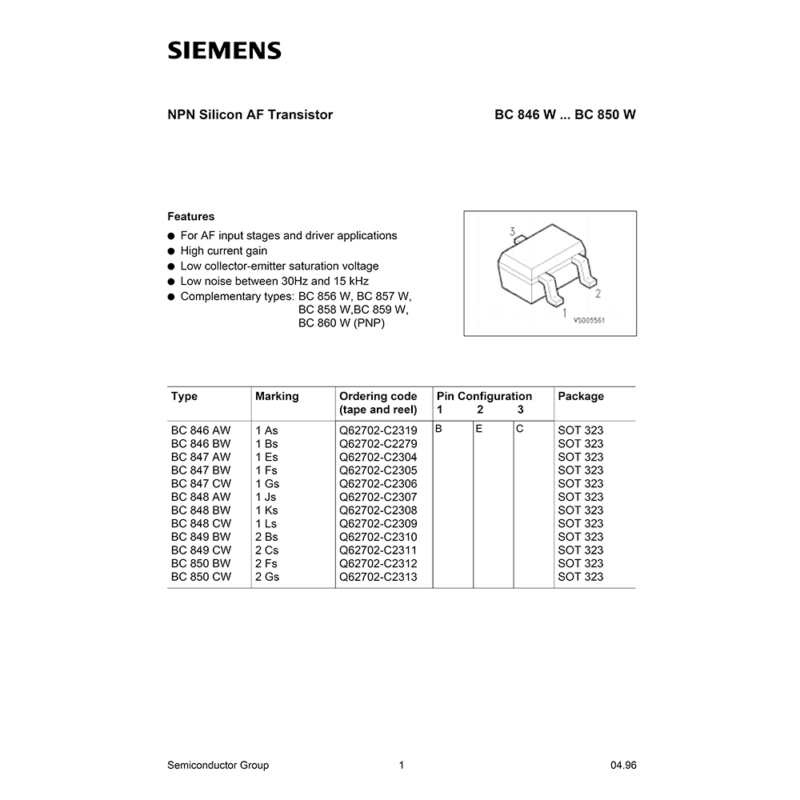

Siemens BC848CW SOT23 NPN Silicon AF Transistor Data ( SMD code: 1Ls )

Features:
– For AF input stages and driver applications
– High current gain
– Low collector-emitter saturation voltage
– Low noise between 30Hz and 15 kHz

DATASHEET
TABLE OF CONTENTS:
– BC848CW 1Ls pinout
– Maximum Ratings
– Maximum Collector-emitter voltage
– Maximum Collector-base voltage
– Maximum Collector-emitter voltage
– Maximum Emitter-base voltage
– Maximum Collector current
– Maximum Collector peak current
– Maximum Total power dissipation
– Maximum Junction temperature
– Characteristic: DC Characteristics. AC Characteristics.

Figures:
– Total power dissipation
– Collector-base capacitance
– Emitter-base capacitance
– Permissible pulse load
– Transition frequency
– Collector cutoff current
– Collector-emitter saturation voltage
– DC current gain
– Base-emitter saturation voltage
– h parameter normalized
– Noise figure
