AB812 Advanced Semiconductor Varactor Standard Power Multiplier Diode Data Sheet

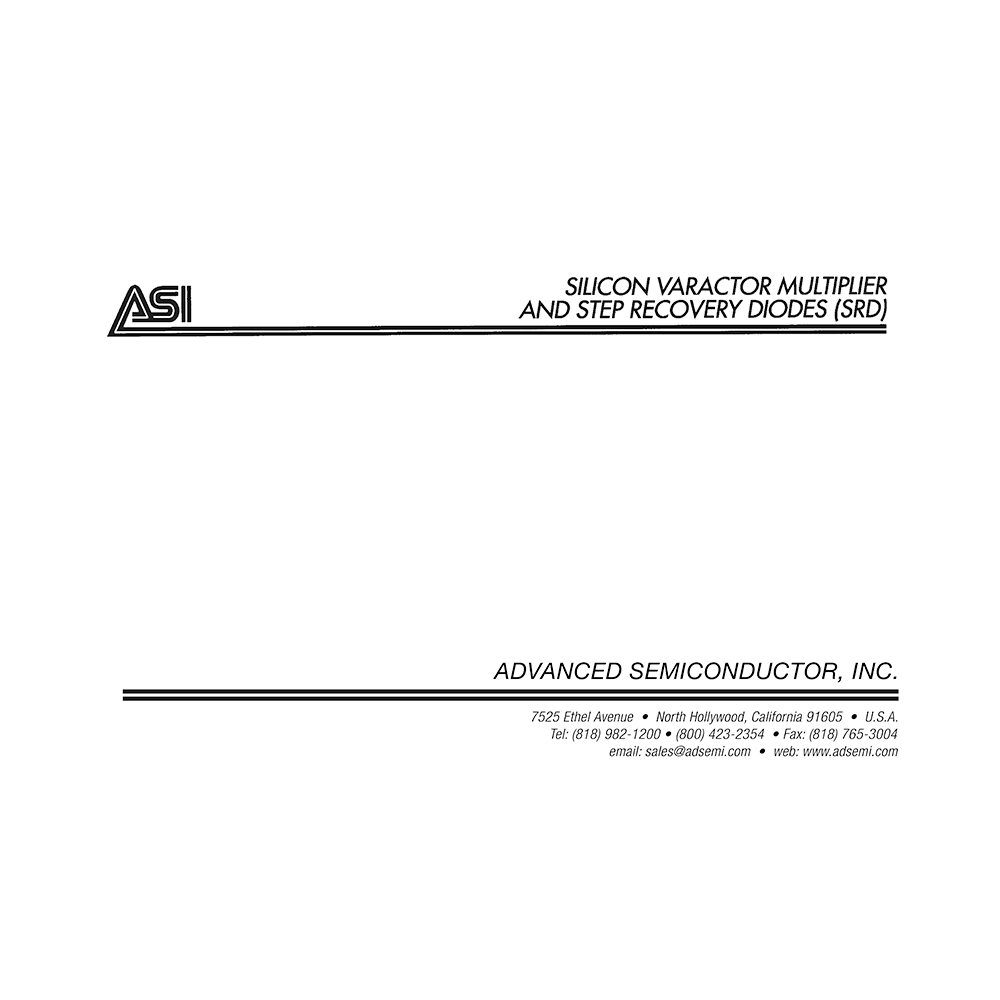

Download Datasheet for Advanced Semiconductor AB812 Varactor Standard Power Multiplier Diode [3 pages 2004 pdf/zip]
ASI AB812 Standard Power Multiplier Diode datasheet.
Varactor Multiplier Diodes (or Multi-Mode Diodes) generally exhibit a larger capacitance variation between zero volts and minus six (6) volts reverse bias. The use of these diodes results in:
– High Efficiency
– High Output Power
– Low Order Multiplication
TABLE OF CONTENTS:
– Absolute Maximum Ratings
– Breakdown Voltage
– Selection of Bias resistor
– Transition time
– Minority Carrier Lifetime
– Thermal Resistance
– Figure: Reactance vs Frequency
– Minimum Cutoff Frequency
– Typical efficiency as a Tripler
– Typical available Output Power
