1N5156 Advanced Semiconductor Varactor Multiplier Diode Data Sheet
Download PDF datasheet for Advanced Semiconductor (ASI) 1N5156 Varactor Multiplier Diode (EN) 3 pages 2004 zip
Description

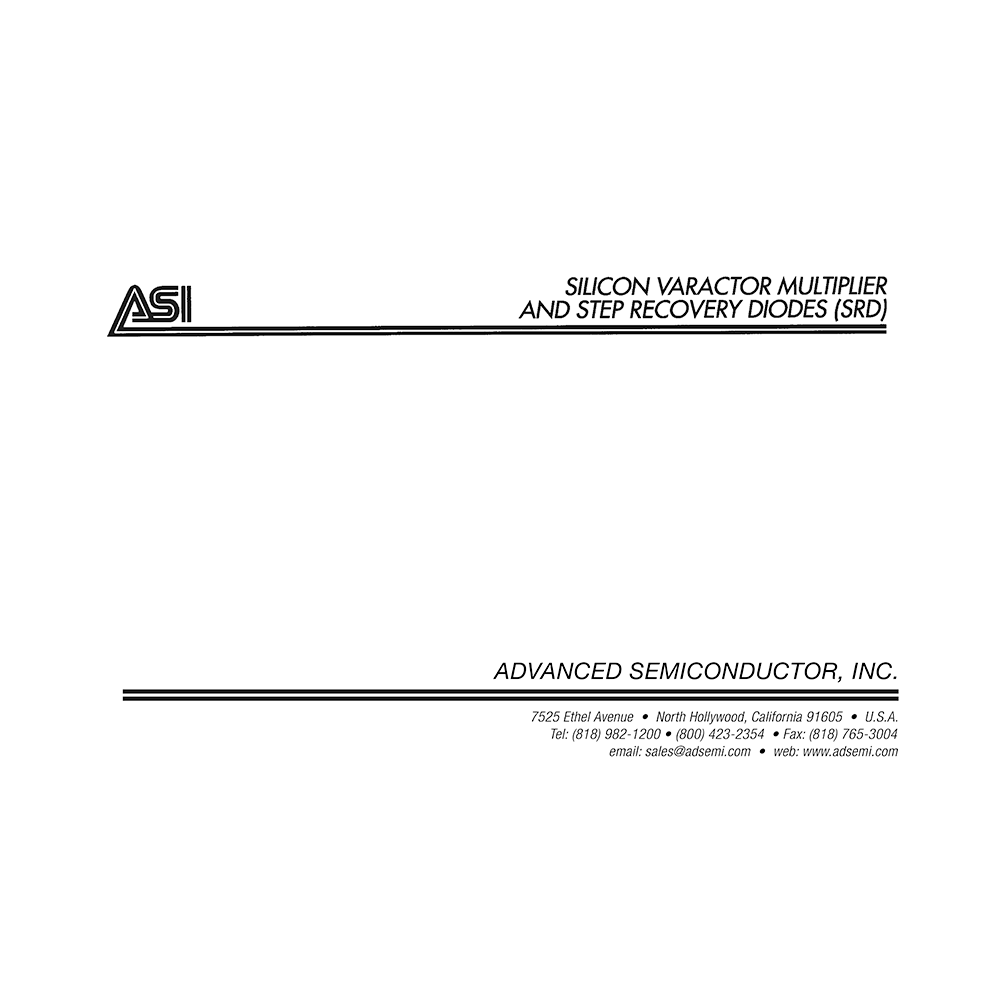

This PDF datasheet is for the 1N5156 Varactor Multiplier Diode (by Advanced Semiconductor).
About the Item
Advanced Semiconductor (ASI) 1N5156 Varactor Multiplier Diode
Varactor Multiplier Diodes (or Multi-Mode Diodes) generally exhibit a larger capacitance variation between zero volts and minus six (6) volts reverse bias. The use of these diodes results in:
– High Efficiency
– High Output Power
– Low Order Multiplication
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Absolute maximum ratings
– Junction capacitance
– Breakdown voltage
– Selection of Bias resistor
– Tansition time
– Minority carrier lifetime
– Thermal resistance
Why Download the Datasheet?
This datasheet provides all the information from ASI (Advanced Semiconductor) about the 1N5156 Varactor Multiplier Diode, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
